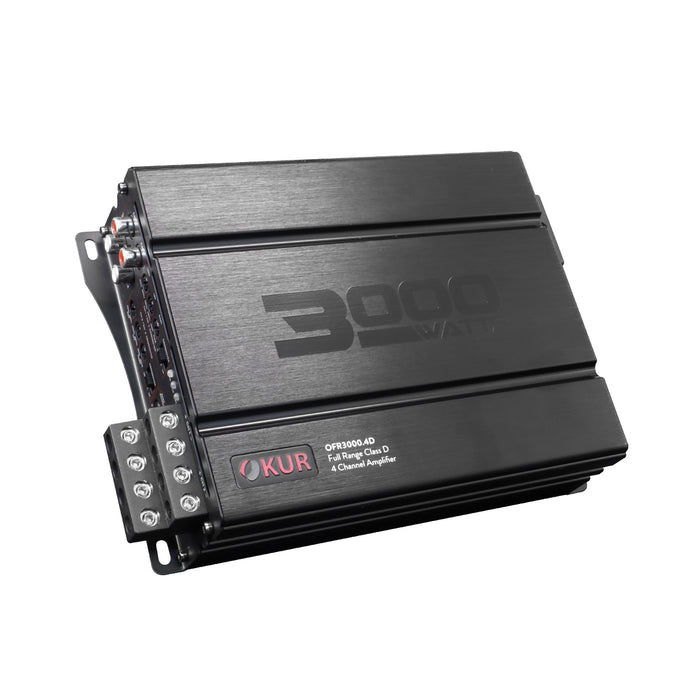

OFR3000.4D

OKUR (OFR3000.4D) FULL RANGE CLASS D 4 CHANNEL

FEATURES:

• 4 Channel Full Range Class D Circuitry
• 1 Ω Stereo load Capability
• Low Level RCA inputs
• Selectable Crossover: HPF/LPF/Full
• Bridgeable outputs @ 2Ω load
• Compatible with any 4/1Ω Loudspeaker
• High Efficiency Mosfet Design
• Heat Management System

PARAMETERS:

• Bandwidth(-3dB): 18Hz – 22KHz
• S/N Ratio: < 90 dB
• Input Sensitivity: 285Mv – 6V
• Minimum Load Impedance: 1 Ohm Stereo
• Input: Pre in RCA
• Crossover Fire Slope in Stereo: 12dB
• Channel 1-2 HPF range: 15Hz-6KHz
• Channel 1-2 LPF range: 50Hz-6KHz
• Channel 3-4 HPF range: 15Hz-6KHz
• Channel 3-4 LPF range: 50Hz-6KHz

GENERAL SPECIFICATIONS:

• Rated Power @ 14.4 Volts
  • 4 x 325 Watts @ 4Ω
  • 4 x 750 Watts @ 2Ω
  • 2 x 1500 Watts @ 2Ω Bridged

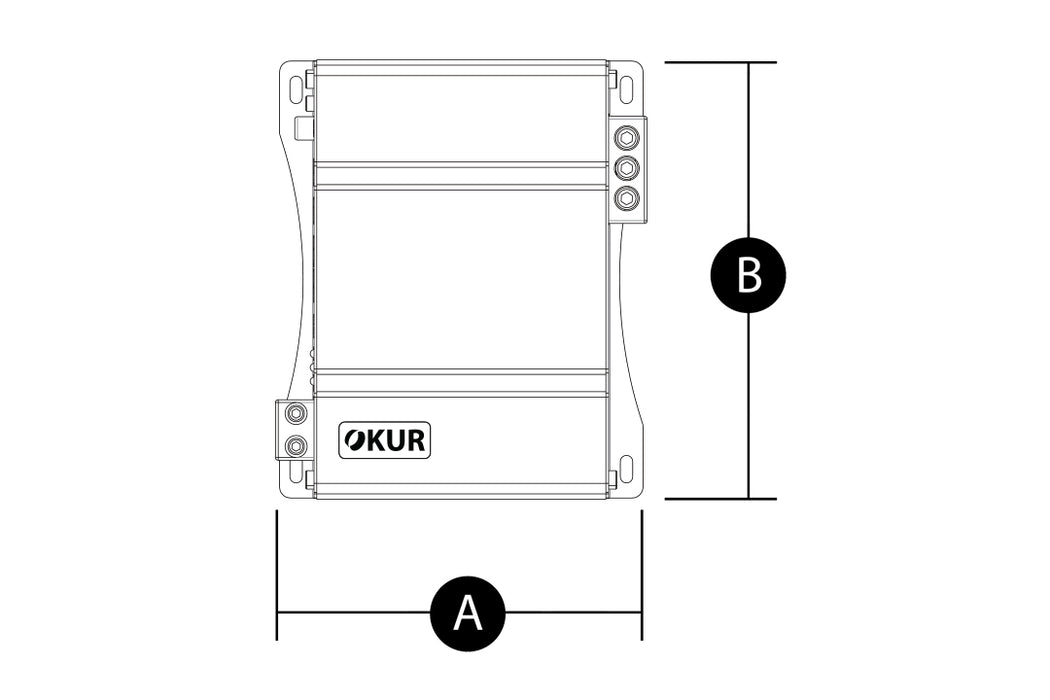

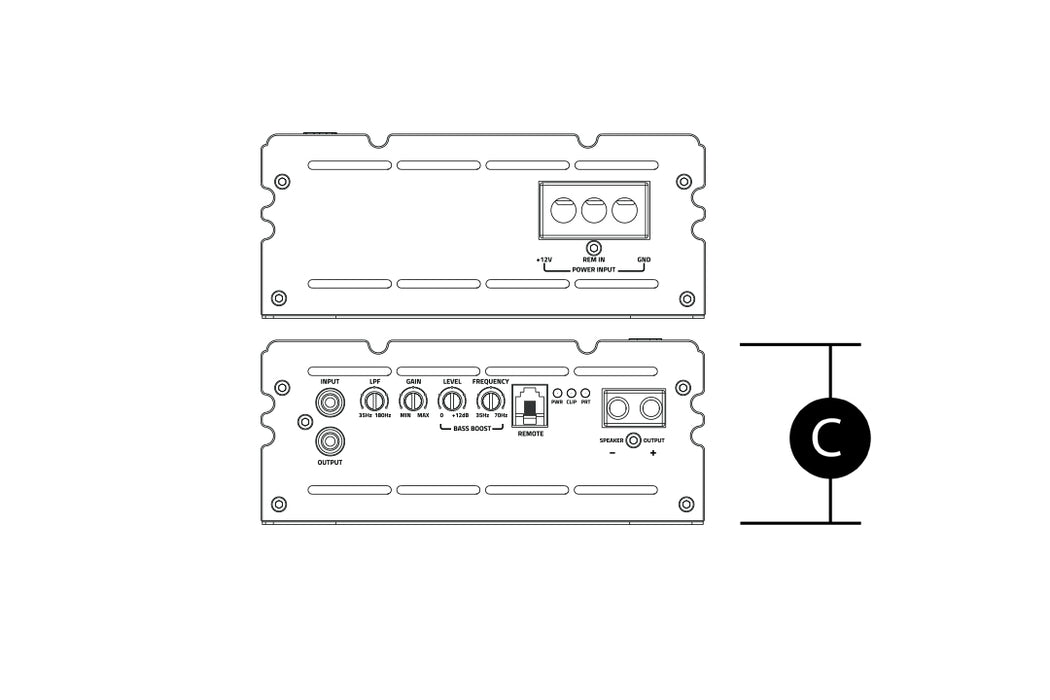

DIMENSIONS:

• Length (A)    8.90″ / (226mm)
• Width (B)    6.14″ / (156mm)
• Height (C)    2.20″ / (569mm)
