EXW10NCF

XPERT

EXW10NCF : 10" NEO Carbon Fiber Woofer

Feel the power of precision with the XPERT NEO Carbon Fiber Subwoofer! Get ready to elevate your audio experience with the EXW10NCF 10in NEO Carbon Fiber Woofer from XPERT! Engineered to perfection, this subwoofer boasts a carbon fiber cone and a die-cast aluminum basket with radial venting for superior performance. The weather-resistant cone and surround ensure durability, while the large gauge compression terminals and neodymium radial magnet motor deliver unparalleled sound clarity. With a dual 4Ω voice coil impedance and a sturdy 2.5” voice coil, this woofer is designed to handle the deepest bass with ease. Plus, the protective PVC gasket adds an extra layer of safety. Whether you're cruising down the highway or hosting a party, the XPERT NEO Carbon Fiber Subwoofer is your ultimate audio companion.

FEATURES:

• 10" NEO Carbon Fiber Woofer
• 1250/2500w
• 2.5" voice coil
• Die-Cast Aluminum Basket with Radial Venting
• Large Gauge Compression Terminals
• Rubber Surround
• Carbon fiber Cone
• Neodymium Magnet
• Weather Resistant cone and surround
• PVC gasket
• Dual 4Ω 4 Layer Voice Coil

SPECS:

• Resonant Frequency (fs):  42.81Hz
• D.C. Voice Coil Resistance (Re):  3.2Ω+3.2Ω
• Mechanical Quality Factor (Qms):  2.708
• Electrical Quality Factor (Qes):  0.502
• Total Quality Factor (Qts):  0.424
• Compliance Equivalent Volume (Vas):  10.893L
• Mechanical Compliance (Cms):  63.944 mm/N
• Nominal Impedance:  4Ω
• Power Handling:  1250 Watts
• Dynamic Wattage:  2500 Watts
• BL: 27.216
• MMS: 216.112gr
• SPL: 84.2dB
• X-MAX: 28mm

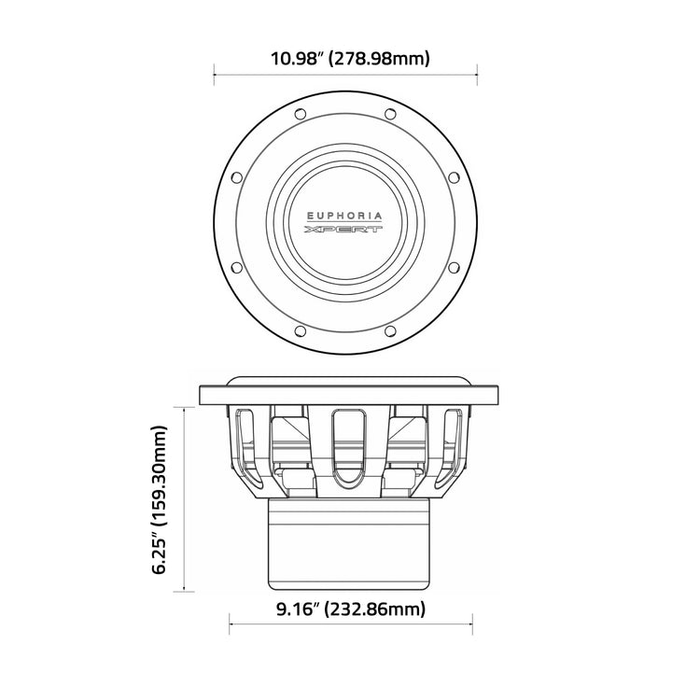

Mounting Information:

• Overall Diameter:  278.98mm
• Cut Out Diameter:  232.86mm
• Mounting Depth:  159.30mm

Sealed enclosure:

• Box Volume:  .70 cuft.

Ported Enclosure:

• Box Volume:  .96 cuft
• Box Tuning:  35Hz
• Port Area:  10 sq in
• Port Length:  24"
