EXM8NSB
XPERT

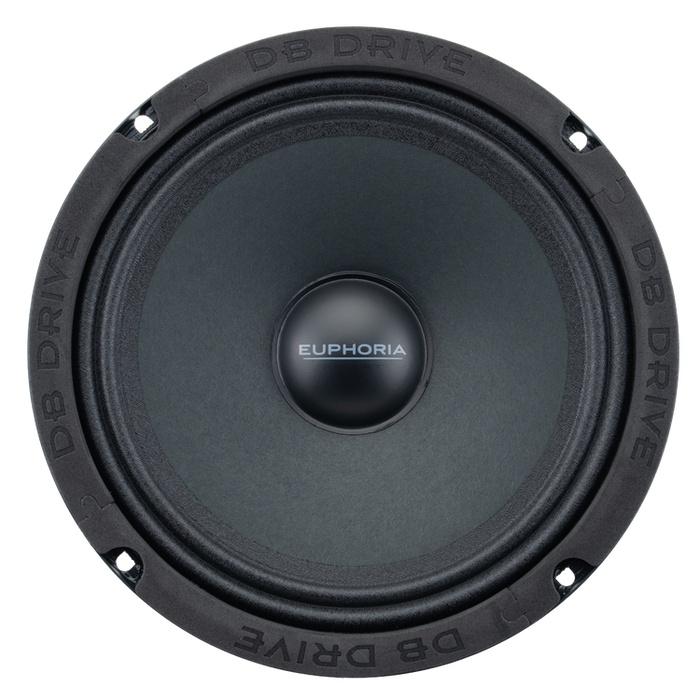

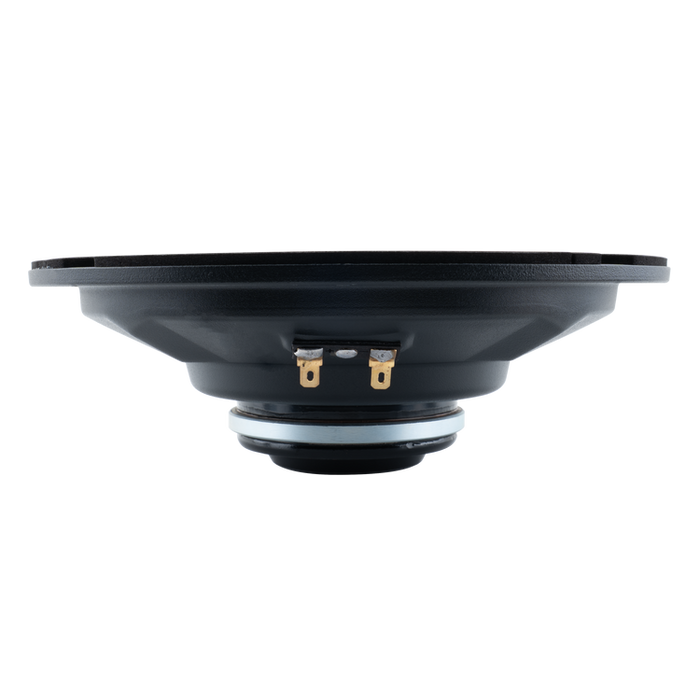

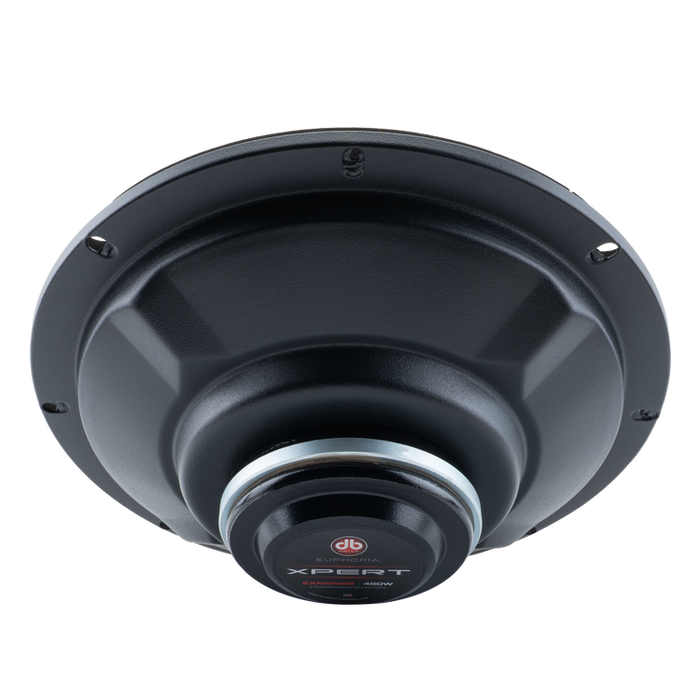

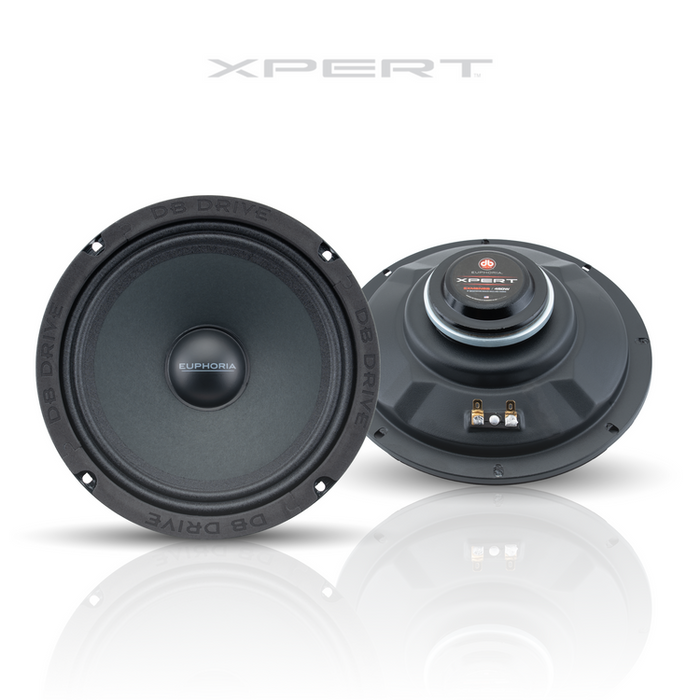

EXM8NSB : 8 in. NEO Sealed Back Midrange (Sold as single)
Elevate Your Sound with XPERT's EXM8NSB Midrange Magic! Discover the pinnacle of audio performance with the XPERT NEO SEALED BACK MID-RANGE EXM8NSB. Featuring a Ring Equalized Neodymium Magnet Assembly, this 8-inch marvel delivers a frequency response from 375Hz to 4.8KHz, ensuring every note is crisp and clear. The IP52 Rasted Paper Cone with Treated Cloth Surround, paired with a Stamped Steel Basket, guarantees durability and premium sound quality. With a 1.5-inch voice coil and 4Ω impedance, this midrange speaker is designed to elevate your listening experience. Perfect for audiophiles seeking precision and power, the EXM8NSB is where innovation meets excellence. Experience the XPERT difference today!
FEATURES:
- 1.5″ (38.1mm) Midrange voice coil
- Ring equalized Neodymium magnet assembly
- Paper Cone
- Cloth Surround
- Stamped steel basket
- Sold Each
SPECS:
- Resonant Frequency (fs) 474.2Hz
- D.C. Voice Coil Resistance (Re) 3.2Ω
- Mechanical Quality Factor (Qms) 5.05
- Electrical Quality Factor (Qes) 1.76
- Total Quality Factor (Qts) 1.31
- Nominal Impedance 4Ω
- Power Handling 225 Watts
- Dynamic Wattage 450 Watts
- Sensitivity (1w/1m) 98.9 dB
- Frequency Response 375Hz – 4.8KHz

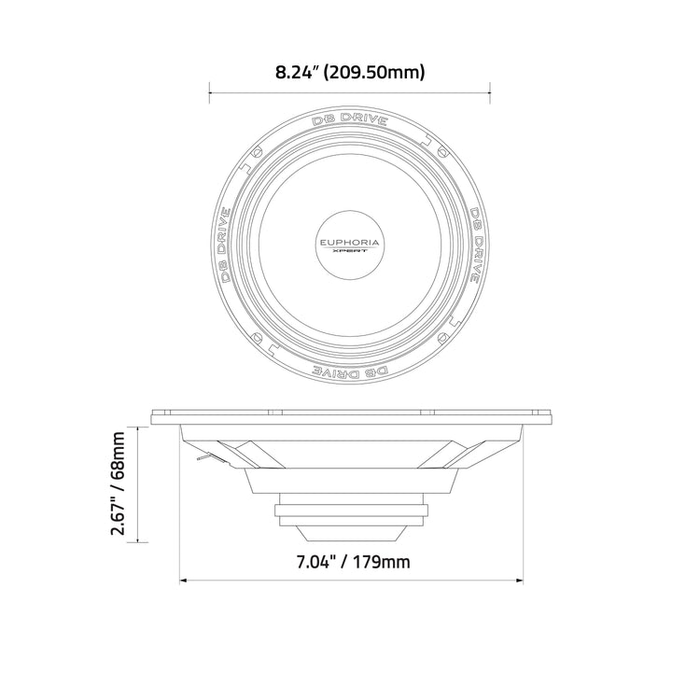

DIMENSIONS:
- Nominal Basket Size: 8.24"/ 209.5 mm
- Cutout Diameter: 7.04"/ 179 mm
- Mounting Depth: 2.67"/ 68 mm
