EXM6N-CFV2 : 6.5 in. NEO Carbon Fiber Midrange (Sold As Single)

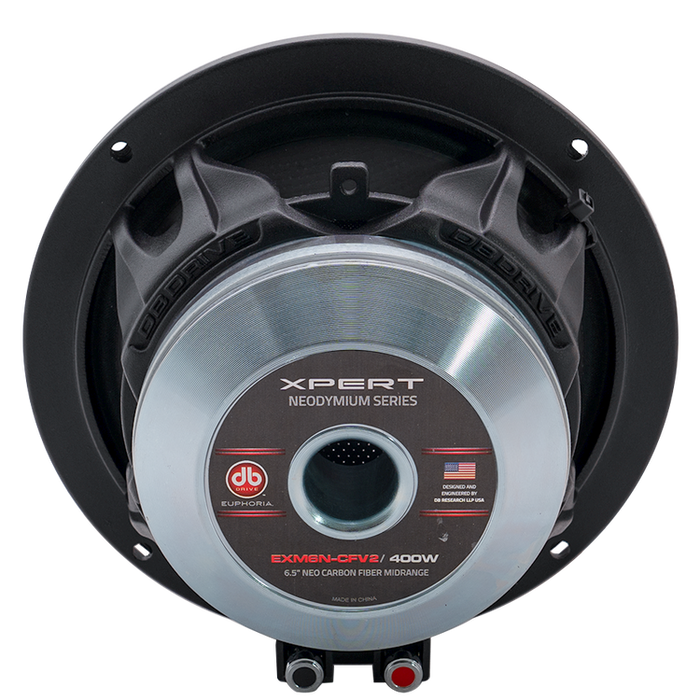

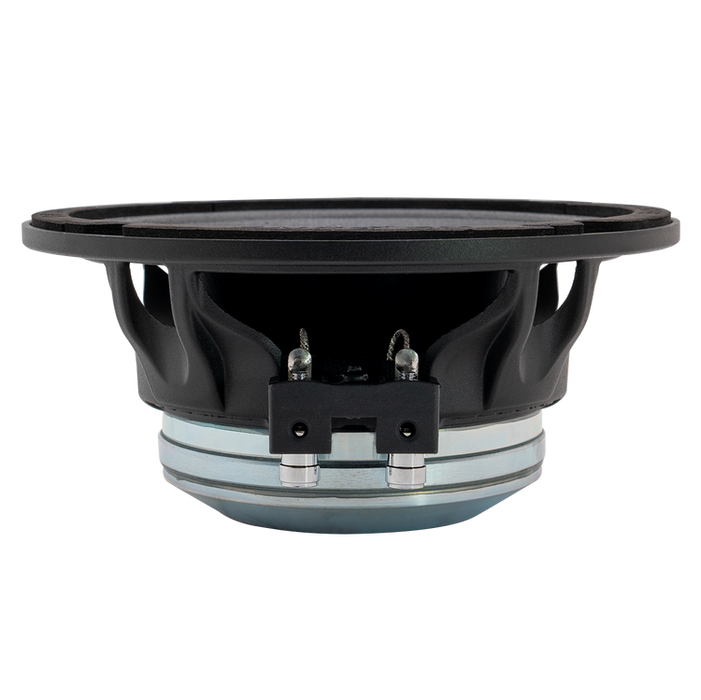

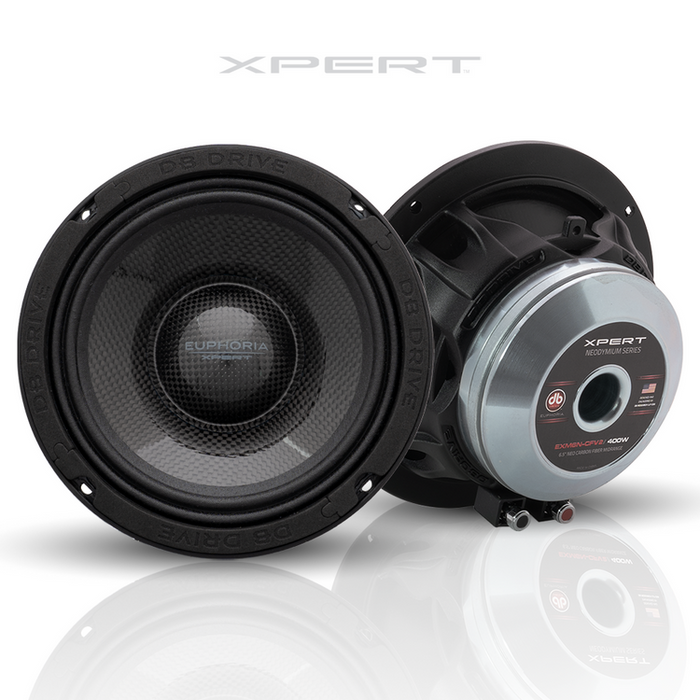

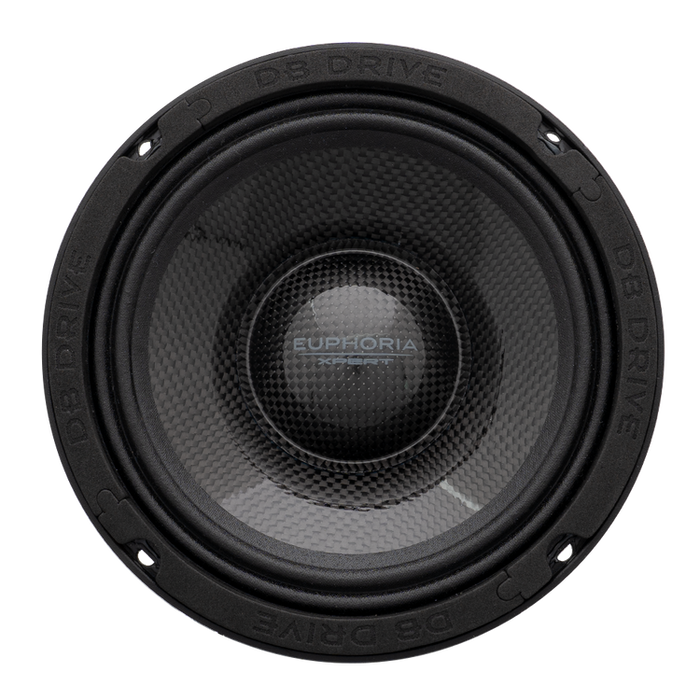

The EXM6N-CFV2 is an 6" Neo Carbon Fiber Midrange Speaker with a 2.0" voice coil for clear, accurate midrange sound. It features a Neodymium Ring Magnet Assembly for efficient power and output. The weather-resistant carbon fiber cone is IP65 rated for durability in harsh conditions. A die-cast aluminum basket with radial venting ensures optimal airflow and heat management. Built for performance and longevity, it’s perfect for both indoor and outdoor audio applications.
FEATURES:
- 6" Neo Carbon Fiber midrange
- 2.0" (51 mm) Voice Coil
- Neodymium M-Ring Magnet Assembly
- Optimized for High Output SQ Sound Systems
- Weather Resistant Carbon Fiber Cone with cloth Surround
- Custom Die-Cast Aluminum Basket with Radial Venting
- Sold Each
SPECS:
- Power Handling: 200 Watts
- Dynamic Wattage: 400 Watts
- Resonant Frequency (fs): 82.4 Hz
- D.C. Voice Coil Resistance (Re): 3Ω
- Mechanical Quality Factor (Qms): 3.38
- Electrical Quality Factor (Qes): 0.49
- Total Quality Factor (Qts): 0.42
- Compliance Equivalent Volume (Vas):5.9 L
- Mechanical Compliance (Cms): 0.24 mm/N
- Sensitivity (1w/1m): 98.7 dB
- Impedance: 3Ω
DIMENSIONS:
- Overall Diameter: 6.52"/ 165.50 mm
- Cutout Diameter: 5.49"/ 139.50 mm
- Mounting Depth: 2.72"/ 69 mm
