EXM10SN
XPERT
EXM10SN : 10 in. NEO Midrange - Stamped Frame (Sold As Single)
Experience the Power of Precision with XPERT NEO Midrange! Introducing the XPERT NEO MID-RANGE EXM10SN, where precision meets power in a 10” structure that redefines your audio experience. Engineered with a Neodymium 12 Piece Radially Equalized Magnet Assembly, this midrange speaker offers unparalleled clarity and depth. The IP52 Rated Paper Cone with Treated Cloth Surround ensures durability and superior sound quality, even in challenging environments. With a frequency response of 75Hz to 12KHz and an impedance of 4Ω, every note is delivered with stunning accuracy. The heavy gauge stamped steel basket adds to the robustness, while the 2.5” voice coil handles power with ease. Elevate your sound system with the XPERT NEO MID-RANGE and feel the difference that expert engineering makes.
FEATURES:
- 2.5″ (63.5mm) Voice Coil
- Neodymium 12 Piece Radially Equalized Magnet Assembly
- IP52 Rated Paper Cone With Treated Cloth Surround
- Heavy Gauge Stamped Steel Basket
- Sold Each
SPECS:
- Resonant Frequency (fs) 49.4Hz
- D.C. Voice Coil Resistance (Re) 3.2Ω
- Mechanical Quality Factor (Qms) 2.68
- Electrical Quality Factor (Qes) 0.36
- Total Quality Factor (Qts) 0.32
- Compliance Equivalent Volume (Vas) 46.5L
- Mechanical Compliance (Cms) 0.27 mm/N
- Nominal Impedance 4Ω
- Power Handling 400 Watts
- Dynamic Wattage 800 Watts
- Sensitivity (1w/1m) 101.8 dB
- Voice Coil Diameter 2.0″ (51mm)

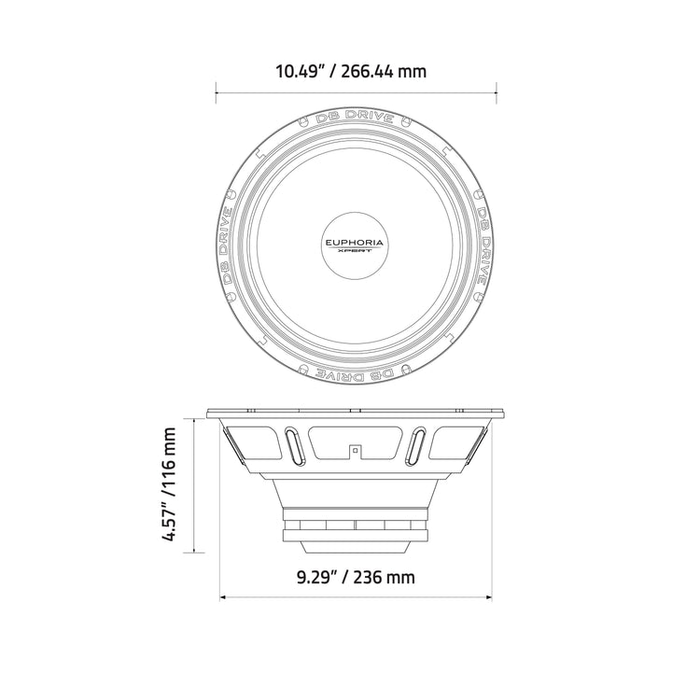

DIMENSIONS:
- Nominal Basket Size: 10"/ 254 mm
- Cutout Diameter: 9.29"/ 236 mm
- Mounting Depth: 4.57"/ 116 mm
