EXM8SN-CF
XPERT
EXM8SN-CF : 8" NEO Carbon Fiber Midrange/Stamp Steel (Sold As Single)
Feel the Power of Precision with XPERT's EXM8SN-CF Mid-Range! Introducing the XPERT NEO MID-RANGE EXM8SN-CF, where innovation meets performance! This 8-inch (20.3cm) marvel boasts a 2-inch (51mm) voice coil and features a robust 10 Neodymium Ring Magnet Assembly, ensuring you experience unparalleled sound clarity and power. Designed with an IP65-rated weather-resistant carbon fiber cone and a durable rubber surround, it's built to withstand the toughest conditions while delivering pristine audio. The heavy gauge stamped steel basket adds a layer of durability, making it a reliable choice for any audio enthusiast. With a 4Ω impedance, it seamlessly integrates into your audio setup. Elevate your sound game with the EXM8SN-CF and let every note resonate with precision and power!
FEATURES:
- 2” (51 mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP65 Rated Weather Resistant Carbon
- Fiber Cone with Rubber Surround
- Heavy Gauge Stamped Steel Basket
- Sold Each
SPECS:
- Nominal Basket Size 8" (203.2 mm)
- Resonant Frequency (fs) 74.4Hz
- D.C. Voice Coil Resistance (Re) 3.2Ω
- Mechanical Quality Factor (Qms) 8.81
- Electrical Quality Factor (Qes) 0.54
- Total Quality Factor (Qts) 0.51
- Compliance Equivalent Volume (Vas) 8.0L
- Mechanical Compliance (Cms) 0.13 mm/N
- Nominal Impedance 4Ω
- Power Handling 300 Watts
- Dynamic Wattage 600 Watts
- Sensitivity (1w/1m) 99.7 dB
- Voice Coil Diameter 2.0″ (51mm)

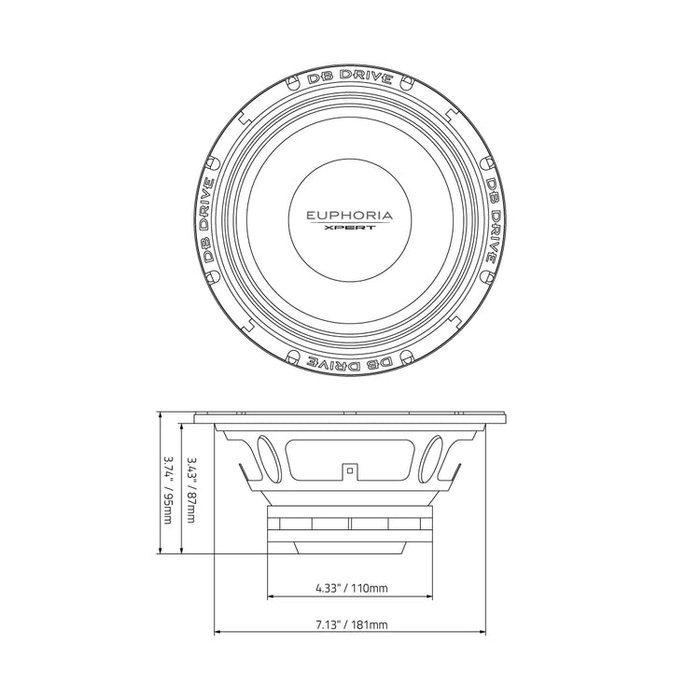

DIMENSIONS:
- Nominal Basket Diameter: 8"/ 203.2 mm
- Mounting Depth: 3.43"/ 87 mm
- Cutout Diameter: 7.13"/ 181 mm
