EX8NCD-CF

by XPERT

XPERT

EX8NCD-CF : 8 in. 2-Way Carbon Fiber Loudspeaker W/ Back Mounted Compression Driver (Sold as a pair)

Turn up the XPERT-ise in your audio experience! Introducing the XPERT EX8NCD-CF: the ultimate 8-inch NEO Mid Speaker with Compression Driver and Passive Crossover. This speaker is designed to revolutionize your audio setup with its cutting-edge features. Boasting a powerful neodymium magnet assembly and a rear-mounted full-sized compression driver, it delivers crystal-clear sound with wide dispersion thanks to the conical HF waveguide. The IP54-rated weather-resistant carbon fiber cone ensures durability, while the 1.4” polyester tweeter diaphragm adds a touch of sophistication to your high frequencies. With a frequency response of 50Hz to 20KHz and an impedance of 4Ω, this speaker is engineered to provide an immersive sound experience. The die-cast aluminum basket with radial venting keeps your speaker cool, even during intense sessions. Plus, the included protective grills and 12dB passive crossover make installation a breeze. Elevate your sound system with the XPERT EX8NCD-CF and experience the pinnacle of audio innovation.

FEATURES:

  • 8″ 2-Way Carbon Fiber Loudspeaker
  • 2.0″ (51mm) Midrange Voice Coil
  • 10 Neodymium Ring Magnet Assembly

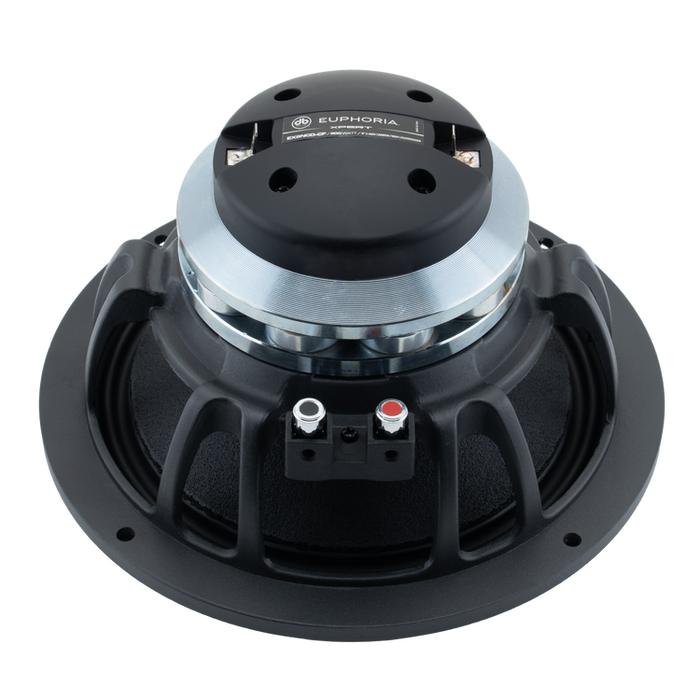

  • Rear Mounted Full Sized Compression Driver

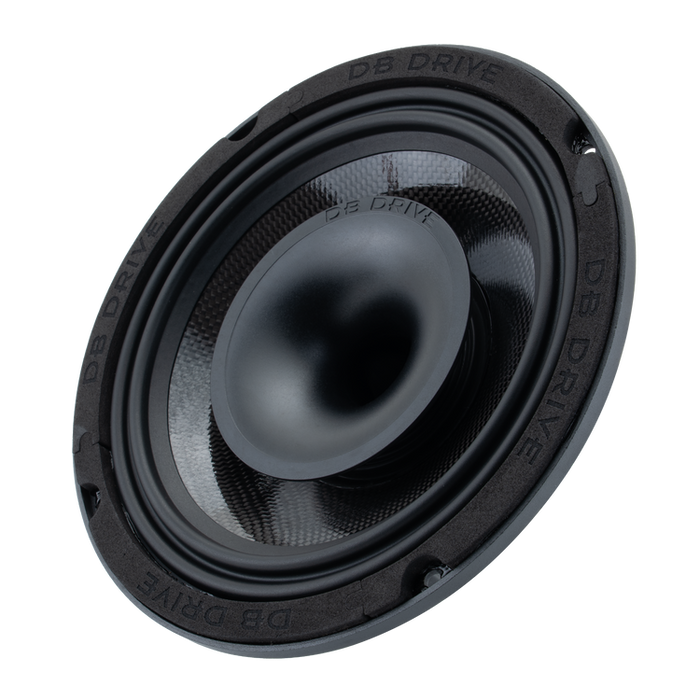

  • IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround
  • Die-Cast Aluminum Basket with Radial Venting
  • 1.4″(36mm) Polyester Tweeter Diaphragm
  • Wide Dispersion Conical HF Waveguide
  • 12dB Passive Crossover Included
  • Protective Grills Included

SPECS:

  • Resonant Frequency (fs)    66.2Hz
  • D.C. Voice Coil Resistance (Re)    3.2Ω
  • Mechanical Quality Factor (Qms)    6.16
  • Electrical Quality Factor (Qes)    0.47
  • Total Quality Factor (Qts)    0.44
  • Compliance Equivalent Volume (Vas)    18.1L
  • Mechanical Compliance (Cms)    0.27 mm/N
  • Nominal Impedance    4Ω
  • Power Handling    450 Watts
  • Dynamic Wattage    900 Watts
  • Sensitivity (1w/1m)    105.7 dB
  • Voice Coil Diameter    2.0″ (51mm)

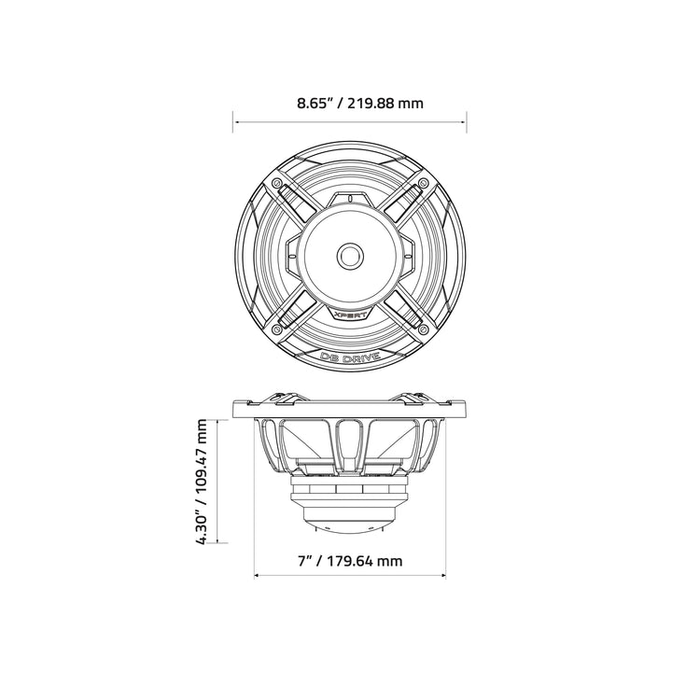

DIMENSIONS:

  • Nominal Basket Size: 8"/ 203.2 mm
  • Cutout Diameter: 7"/ 179.64 mm
  • Mounting Depth: 4.3"/ 109.5 mm
