EX8NCD
XPERT

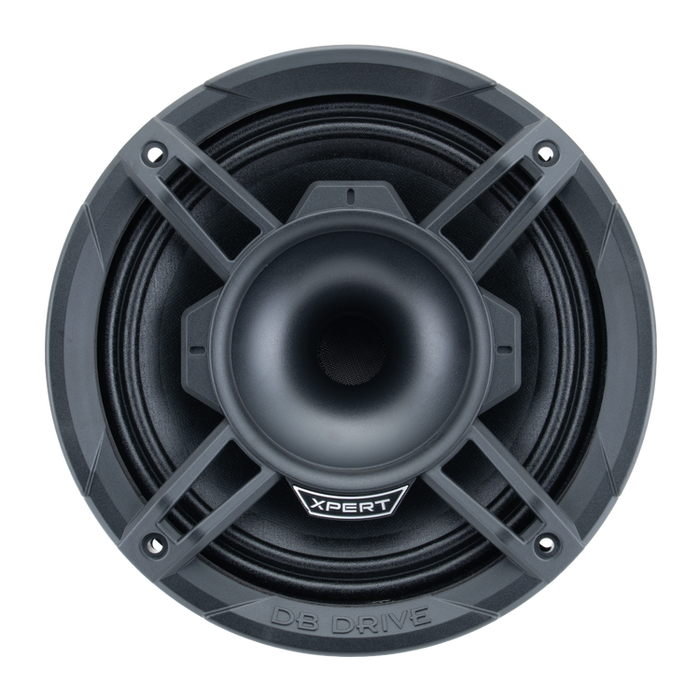

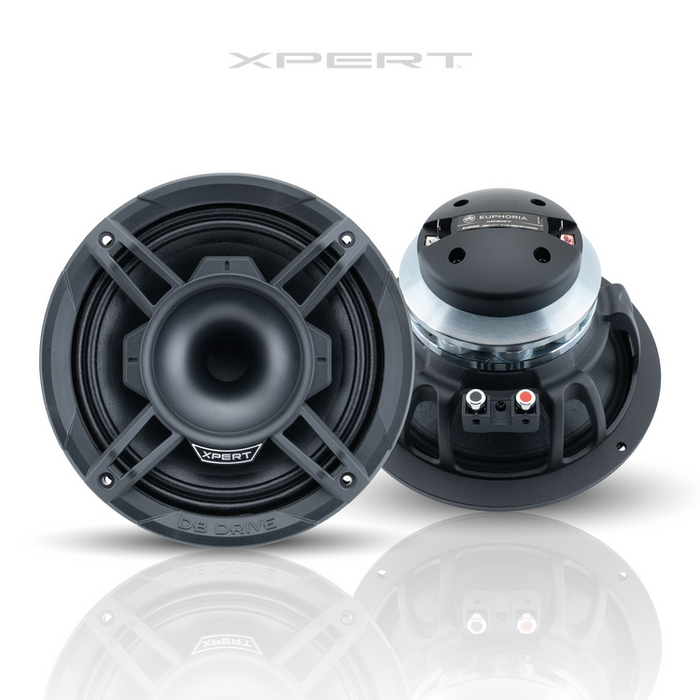

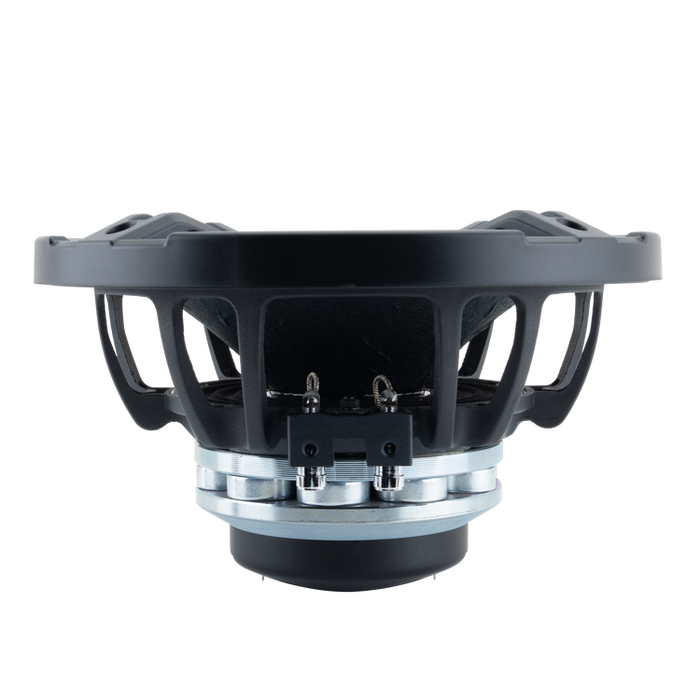

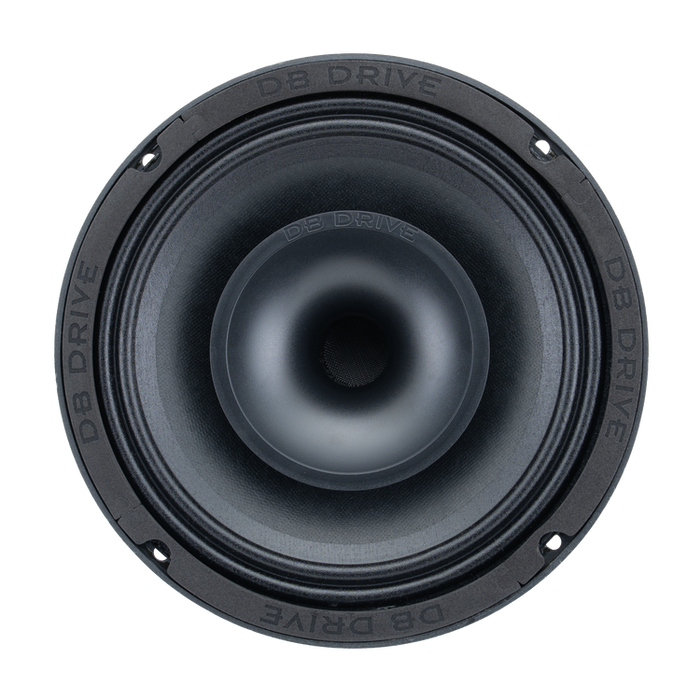

EX8NCD : 8 in. 2-Way NEO Loudspeaker W/Back Mounted Compression Driver (Sold as a pair)
Turn up the XPERT-ise in sound! Introducing the XPERT EX8NCD: 8in 2-Way High-Efficiency Loudspeaker with a Back Mounted Compression Driver Tweeter, your ultimate audio upgrade! This powerhouse speaker features a Neodymium Ring Magnet Assembly and a Rear Mounted Full Sized Compression Driver. With its IP52 Rated Paper Cone and Treated Cloth Surround, this speaker is built to last. The Die-Cast Aluminum Basket with Radial Venting ensures durability and optimal performance. Equipped with a 1.4” (36mm) Polyester Tweeter Diaphragm and a Wide Dispersion Conical HF Waveguide, every note is delivered with precision. The 12db Passive Crossover included enhances the audio experience, while the impressive frequency response of 75Hz - 20KHz ensures you catch every nuance. With an impedance of 5.2Ω and a robust structure featuring an 8” (20.3cm) frame and a 2” (51mm) Voice Coil, this speaker is designed for excellence. Elevate your sound game with the XPERT EX8NCD!
FEATURES:
- 2″ (51mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly

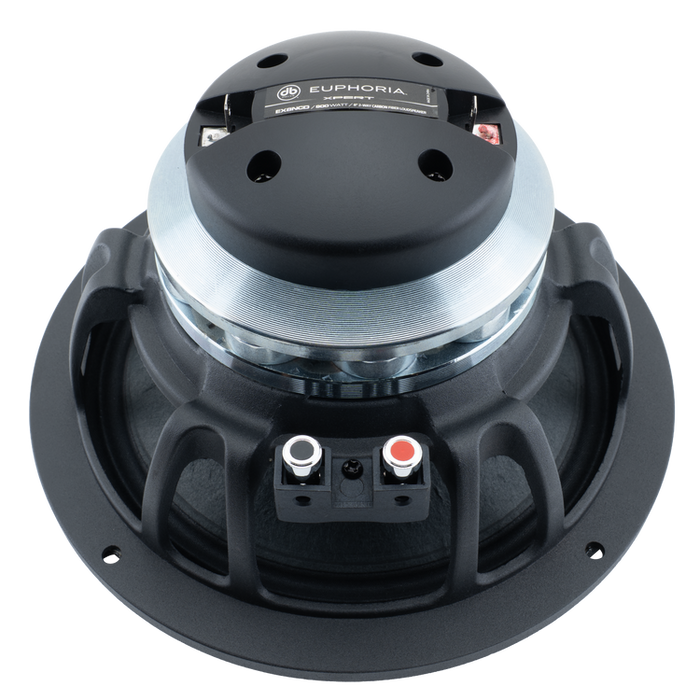

- Rear Mounted Full Sized Compression Driver
- IP52 Rated Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

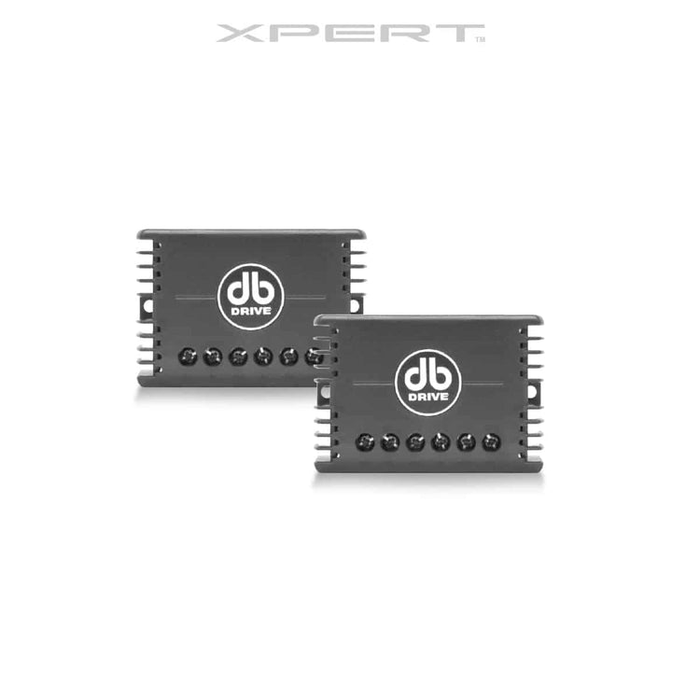

- 12dB Passive Crossover Included
- Protective Grills Included
- Sold in Pairs
SPECS:
- Resonant Frequency (fs) 79.7Hz
- D.C. Voice Coil Resistance (Re) 3.2Ω
- Mechanical Quality Factor (Qms) 8.24
- Electrical Quality Factor (Qes) 0.43
- Total Quality Factor (Qts) 0.41
- Compliance Equivalent Volume (Vas) 16.3L
- Mechanical Compliance (Cms) 0.25 mm/N
- Nominal Impedance 5.2Ω
- Power Handling 450 Watts
- Dynamic Wattage 900 Watts
- Sensitivity (1w/1m) 105.4 dB
- Voice Coil Diameter 2.0″ (51mm)

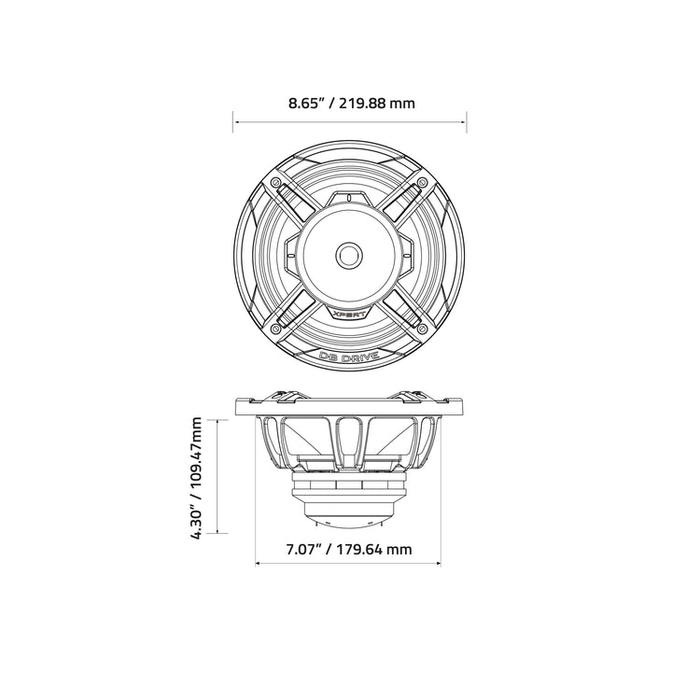

DIMENSIONS:
- Nominal Basket Size: 8"/ 203.2 mm
- Cutout Diameter: 7"/ 178 mm
- Mounting Depth: 4.3"/ 109.5 mm
