EX69NCX
XPERT

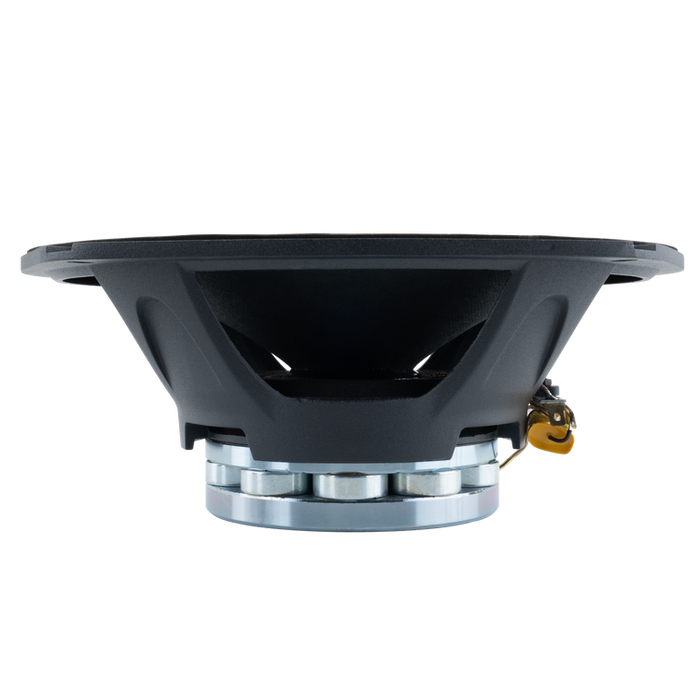

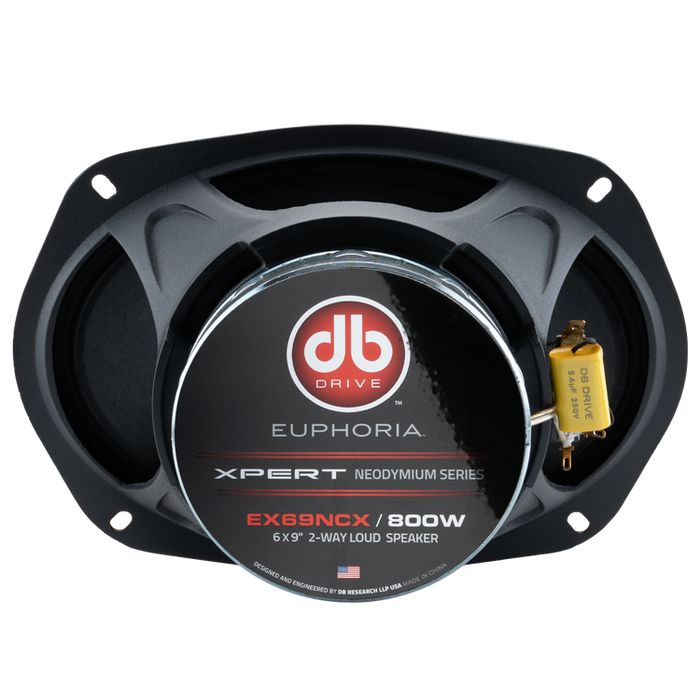

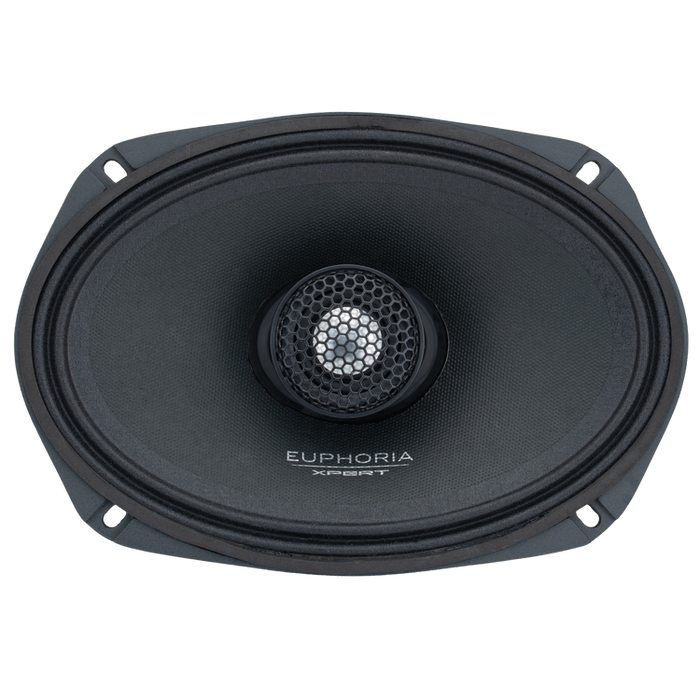

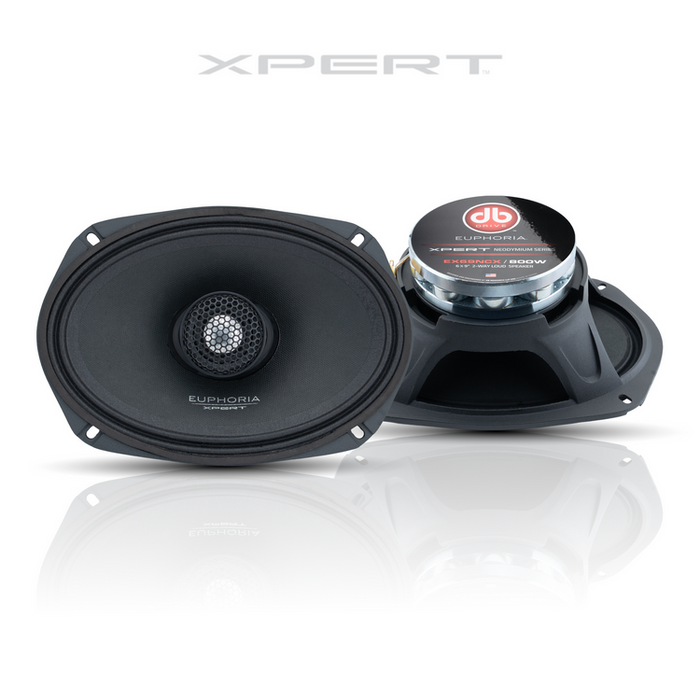

EX69NCX : NEO 6"×9" 2-Way Loudspeaker (Sold as a pair)
Turn up the volume with XPERT's EX69NCX and feel the sound come alive! Experience audio like never before with XPERT's EX69NCX Neo 6x9” speakers! These cutting-edge speakers boast a powerful Neodymium Ring Magnet Assembly and an IP52 Rated Weather Resistant Paper Cone with Cloth Surround, ensuring durability and stellar performance in any setting. The Die-Cast Aluminum Basket with Radial Venting enhances cooling, while the Wide Dispersion 1.25” Aluminum Dome Tweeter ensures crystal clear highs. With a frequency response of 65Hz - 19KHz and an impedance of 4Ω, every beat and note is delivered with precision and power. Elevate your sound system with the innovation and engineering excellence of XPERT's EX69NCX speakers—where every detail matters!
FEATURES:
- 6″x9″ 2-Way Loudspeaker
- 1.5″ (38.1mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP52 Rated Weather Resistant Paper Cone with Cloth Surround
- Die-Cast Aluminum Basket with Radial Venting
- Wide Dispersion 1.25″ (28mm) Aluminum Dome Tweeter
- Sold in Pairs
SPECS:
- Resonant Frequency (fs) 92.1Hz
- D.C. Voice Coil Resistance (Re) 3.2Ω
- Mechanical Quality Factor (Qms) 5.78
- Electrical Quality Factor (Qes) 0.33
- Total Quality Factor (Qts) 0.31
- Compliance Equivalent Volume (Vas) 12.2L
- Mechanical Compliance (Cms) 018 mm/N
- Nominal Impedance 4Ω
- Power Handling 400 Watts
- Dynamic Wattage 800 Watts
- Sensitivity (1w/1m) 96.5 dB
- Voice Coil Diameter 1.5″ (38.5mm)

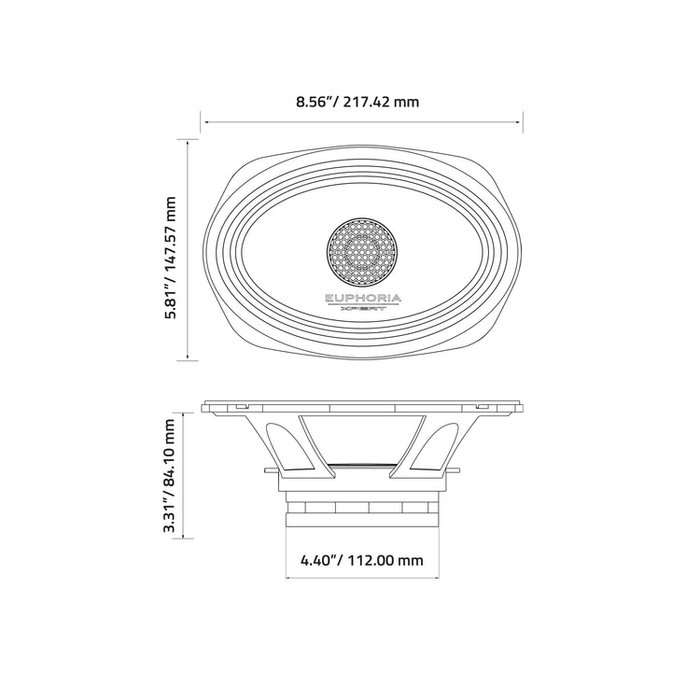

DIMENSIONS:
- Nominal Basket Size: 6.5" X 9.25" / 165 mm X 235 mm
- Cutout Diameter: 5.81" X 8.56" / 148 mm X 218 mm
- Mounting Depth: 3.31"/ 84.1 mm
