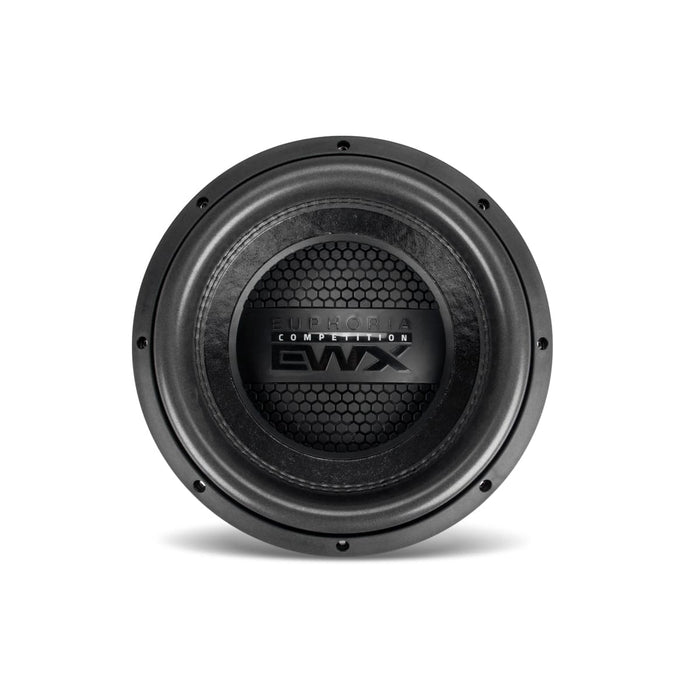

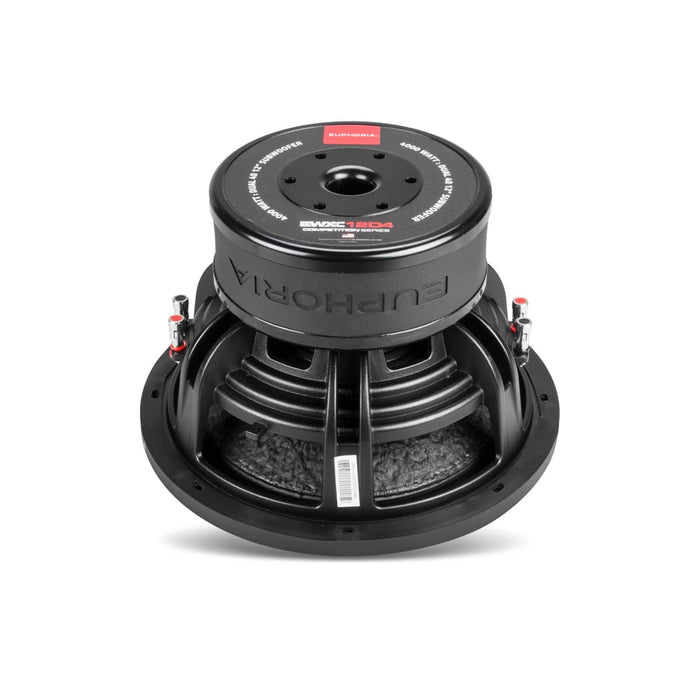

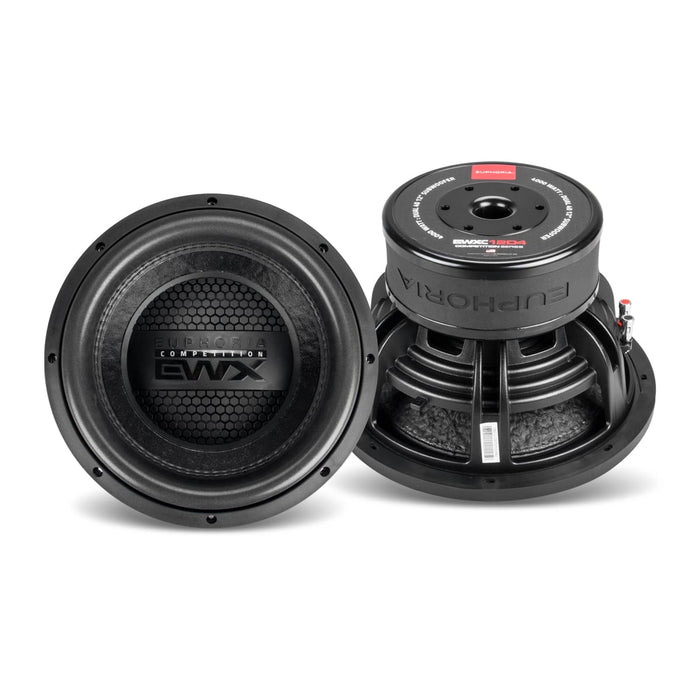

EWXC12D4

Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

    • 184oz Ceramic Ferrite Magnet
    • Low Carbon Steel and Bottom Plates
    • 1.5” Wide DFM Foam Blend
    • Designed to Optimize SPL Performance
    • High Excursion Spider Design
    • Dual 4Ω Voice Coils
GENERAL SPECIFICATIONS
Structure 12″ (30.48cm) Woofer
Dynamic Power Handling 4000 Watts
Nominal Power Handling 2000 Watts
Impedance Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs) 34.632Hz
D.C. Voice Coil Resistance (Re) 3.6Ω + 3.6Ω
Mechanical Quality Factor (Qms) 4.912
Electrical Quality Factor (Qes) 1.088
Total Quality Factor (Qts) 0.891
Equivalent Air Volume to Cms (Vas) 26.084 L
Mass of Diaphragm/Coil (Mms) 314.235 g
Force Factor (Bl) 20.056 N/A
Sound Pressure Level (SPL) 81.9 dB
