ESQ65C
by EUPHORIA

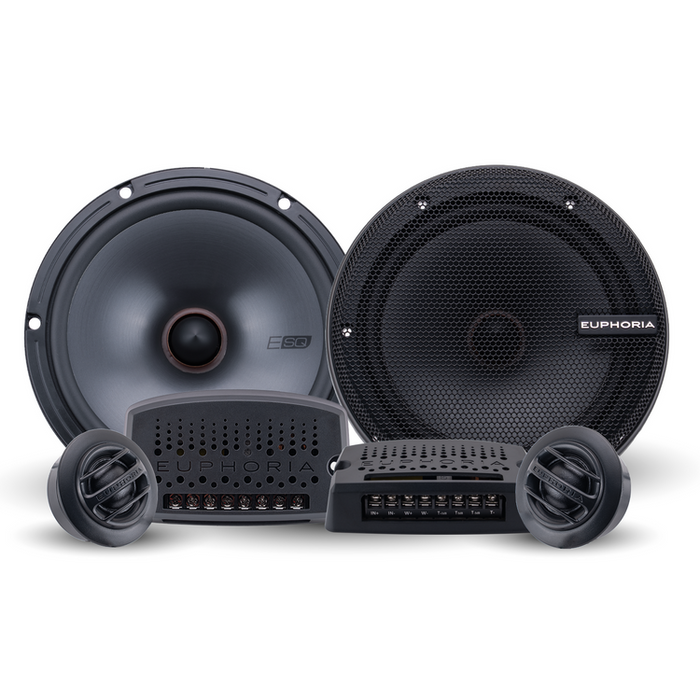

EUPHORIA (ESQ65C) SQ 6.5" 2-Way Component Loudspeaker System
FEATURES:
- 1" Silk Dome Tweeter delivers smooth, detailed high frequencies.
- Versatile Mounting Options: Includes surface, angle, and flush mount accessories for flexible installation.
- Injection-Molded PP Composite Cone with a durable rubber surround for enhanced performance
- 1" Voice coil with enhanced thermal capacity for improved efficiency
- Ferrite Oxide Magnet with an optimized motor structure for greater power handling
- Stamp-Cast Steel Basket for increased durability and reduced resonance
- Precision-Tuned 12dB Premium 2-Way External Crossover for seamless frequency distribution

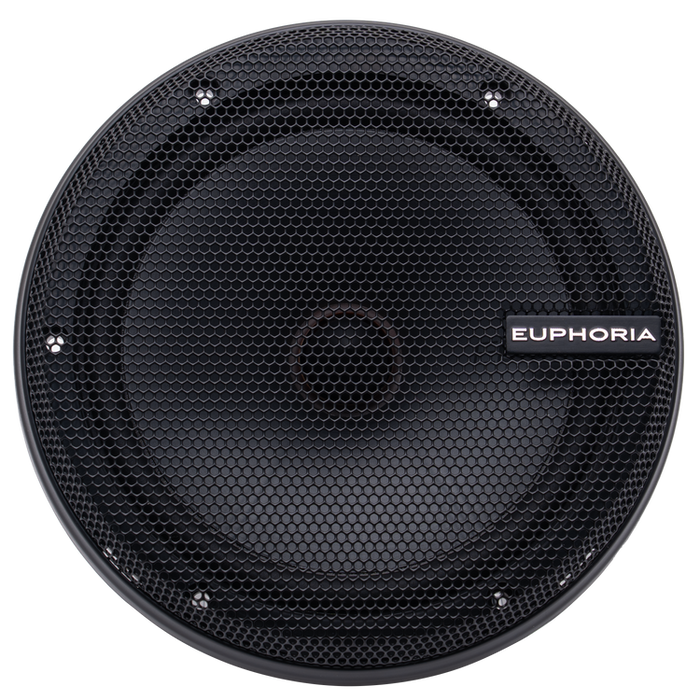

- Protective Grill Included
- Max power : 225 Watts
- Nominal Power Handling : 95 Watts
- Frequency Response: 50Hz - 20KHz
- Impedance: 4Ω
- Sensitivity: 88.7 dB
DIMENSIONS:

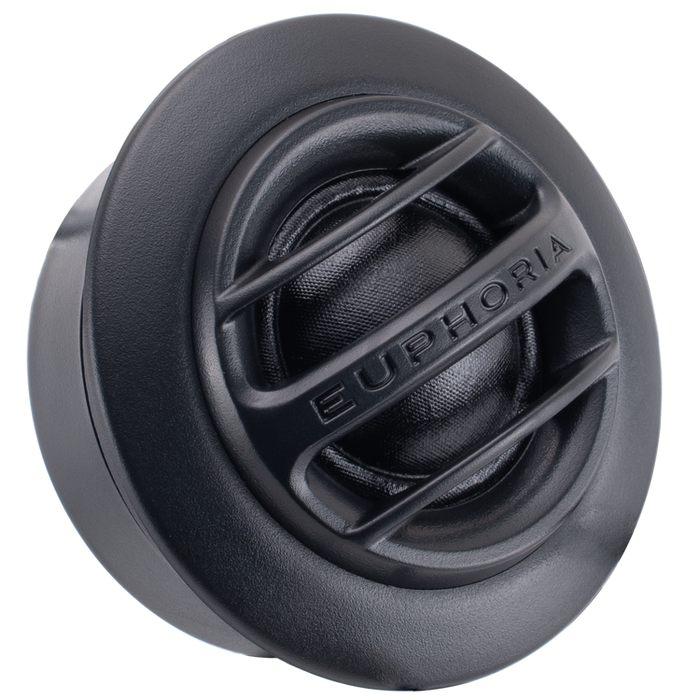

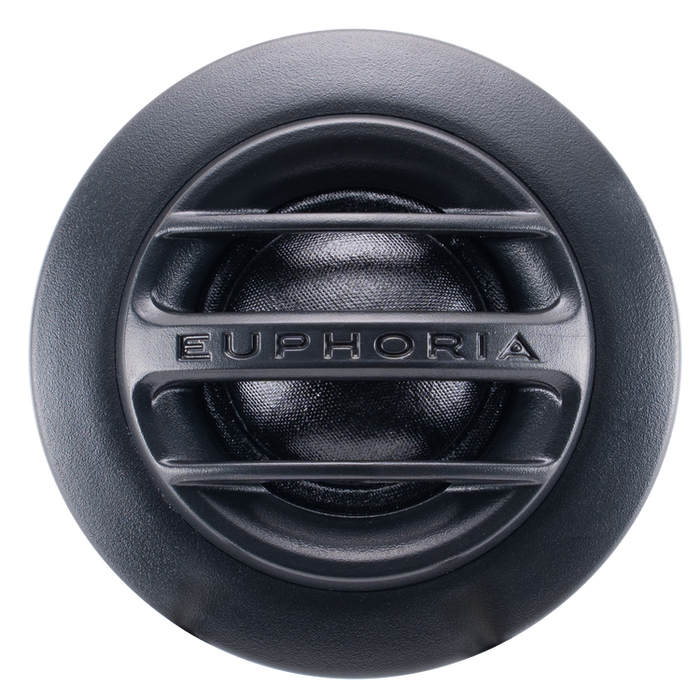

- 1" Tweeter Dimensions:
- Overall Diameter: 2.07"/ 52.5 mm
- Mounting Depth: 0.68"/ 17.2 mm
- Cutout Diameter: 1.78"/ 45.3 mm

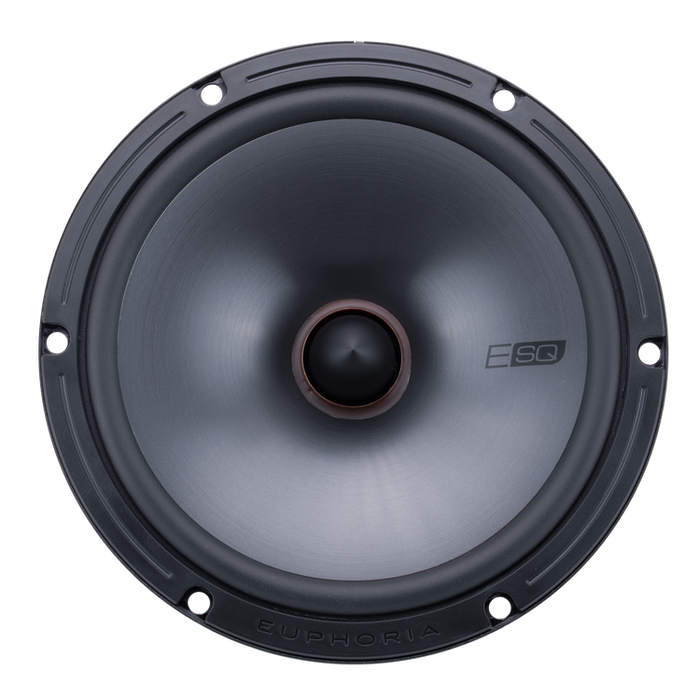

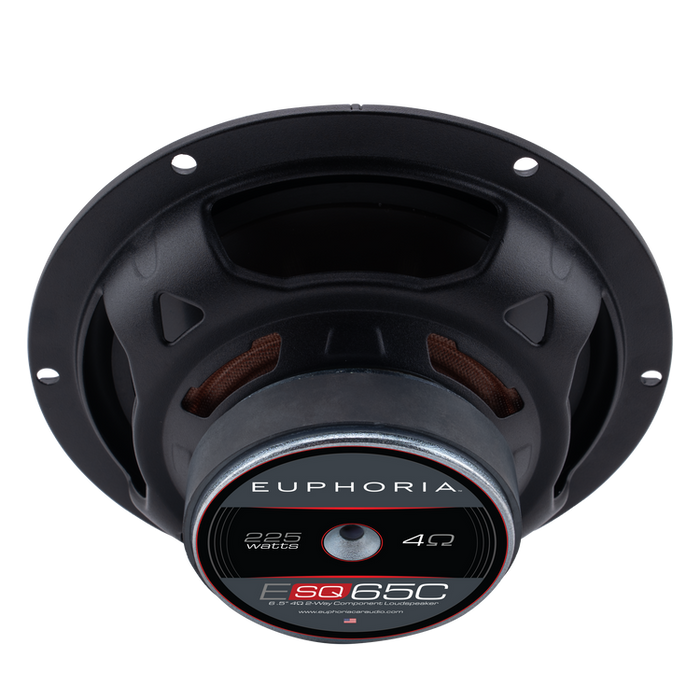

- 6.5" Speaker Dimensions:
- Overall Diameter: 6.46"/ 164 mm
- Mounting Depth: 2.26"/ 57.4 mm
- Cutout Diameter: 5.51"/ 139.9 mm

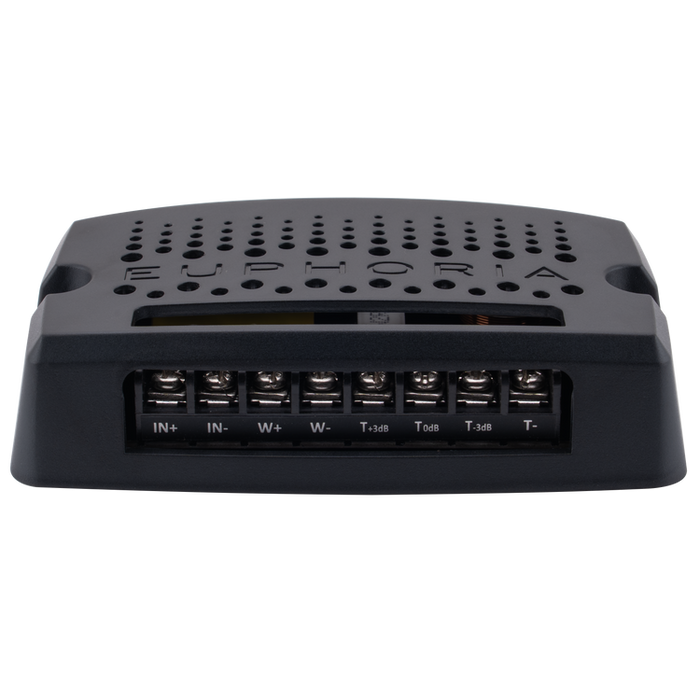

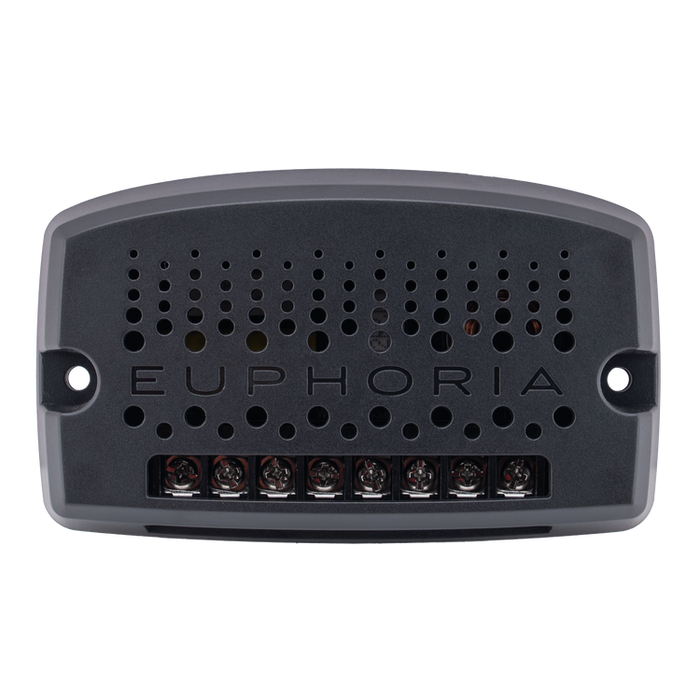

- Crossover Dimensions:
- Length: 5.06"/ 128.6 mm
- Width: 3.04"/ 77.1 mm
- Height: 1.17"/ 29.6 mm
