AUDIO CONTROL

EQL


Highlights:

  • dual 13-band equalizers with level matching controls
  • white steel chassis with gold-plated RCA jacks

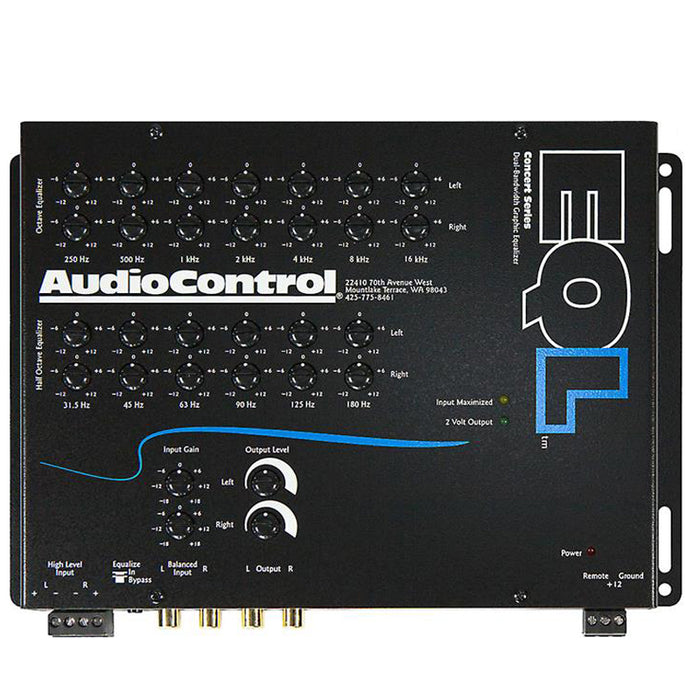

  • top-mounted controls for easy adjustment
  • 2-channel preamp inputs and outputs
  • speaker-level inputs
  • balanced inputs eliminate noise
  • 33 Hz subsonic filter eliminates extreme low bass (rolloff point can be adjusted with optional module)
  • EQ points: 31.5, 45, 63, 90, 125, 180, 250 500, 1000, 2000, 4000, 8000, 16000 Hz
  • frequency response: 10 to 20,000 Hz
  • signal-to-noise ratio: 110 dB at full output
  • maximum output level: 7.5 volts
  • fuse rating: 2 amps
  • size: 6-15/16"H x 8-15/16"W x 1-1/4"D
  • weight: 3 pounds
  • warranty: 5 years
