EDSP31-68
by EUPHORIA

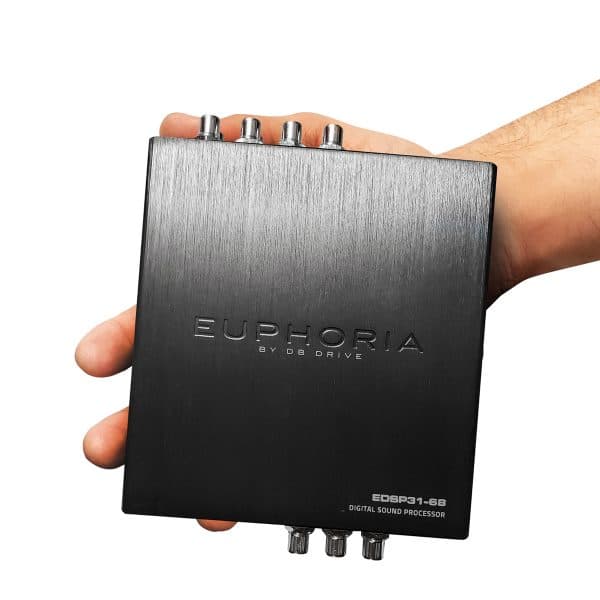

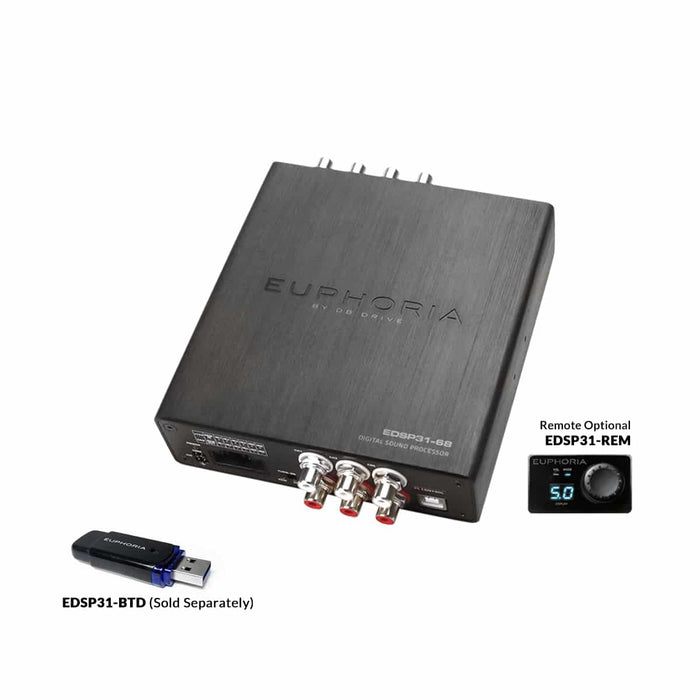

EUPHORIA (EDSP31-68) 31 BRAND 8-CH DSP DIGITAL SOUND PROCESSOR
SPECIFICATIONS:
- DSP settings and adjustments made via PC or optional Smart phone app
- 6 assignable inputs
- Selectable Audio Input: Front, rear and Subwoofer Low-Level- Front and rear Hi-Level
- Optional Wireless Audio Streaming dongle ( sold Seperatly )
- 8 Independently assignable low-level outputs
- Summable Input Channel
- Selectable crossover slopes: ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )
- 31 band graphic EQ with fine tuning • Adjustable high, band-pass, or low-pass filters (20KHz-20Hz)
- Adjustable Time alignment per output channel
- Adjustable Q-Factor per frequency
- Phase adjustment: switchable 0/180 degrees on all output channels
- Audio Sensing Auto remote output
- Includes USB cable and software download QR code
- Optional Dash remote with subwoofer control (sold separately)
- Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10
DIMENSIONS:
- 5.66” x 5.27” x 1.57” – L x W x H
- 144 mm x 134 mm x 40 mm – L x W x H
