E6

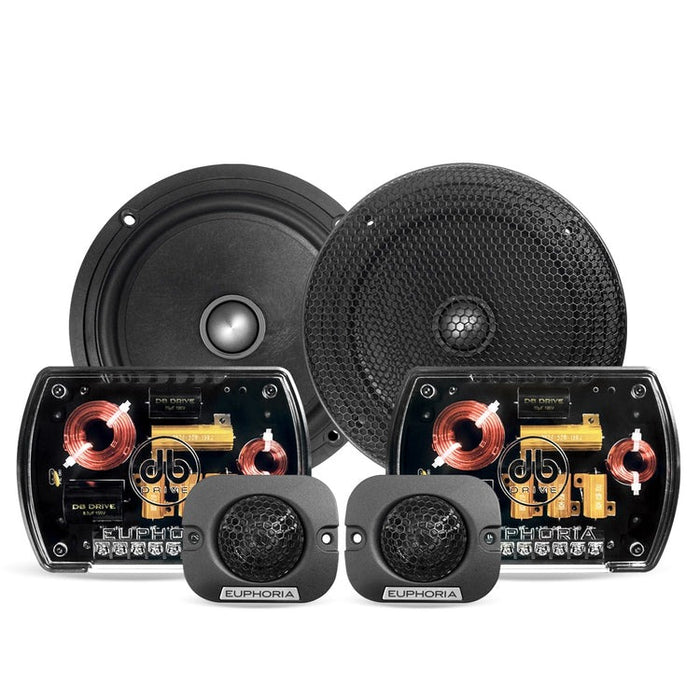

EUPHORIA (E6) COMPONENT SYSTEM (6.5" - 75W RMS)

 FEATURES:

  • 6.5″ 2-Way Component System

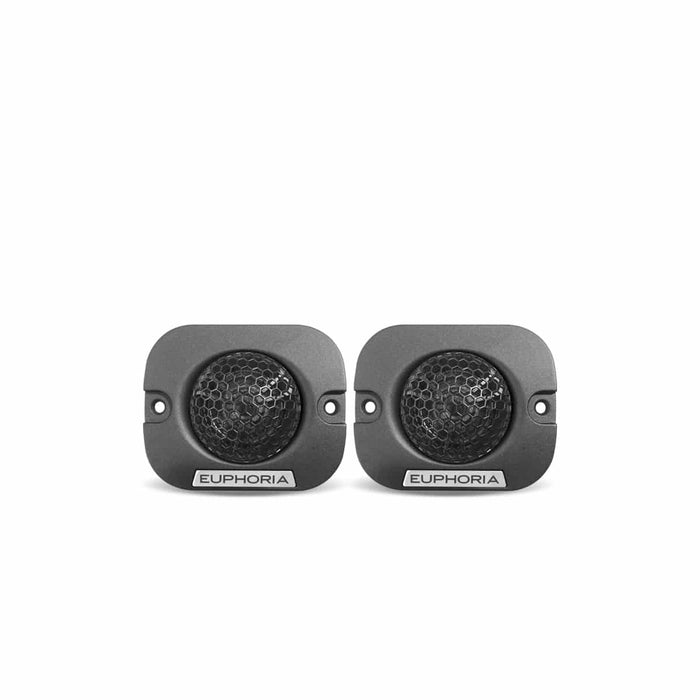

  • ETW-1 Silk Dome Tweeter
  • Dampened Aluminum Alloy Chassis
  • High Energy N40 Neodymium Magnet
  • Under Diaphragm Dampening
  • Low Frequency Rear Resonance Chamber
  • Canted Bottom Back Wave Deflector

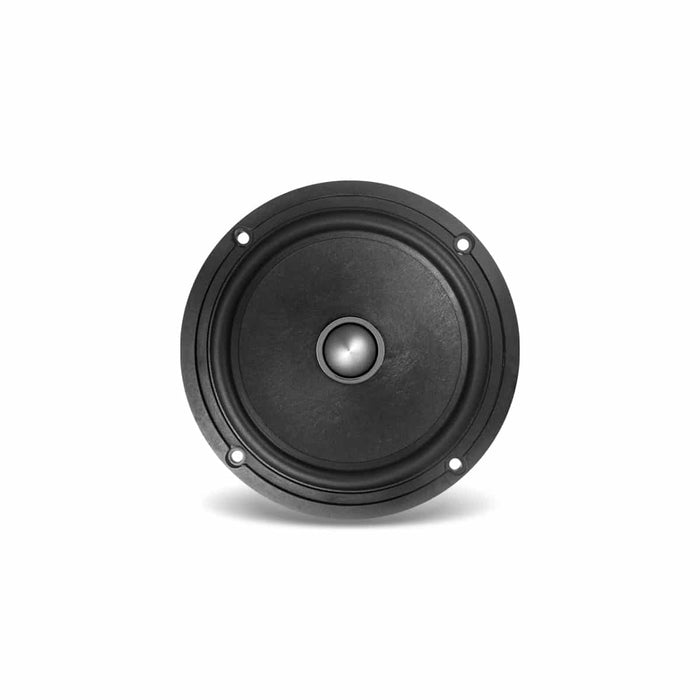

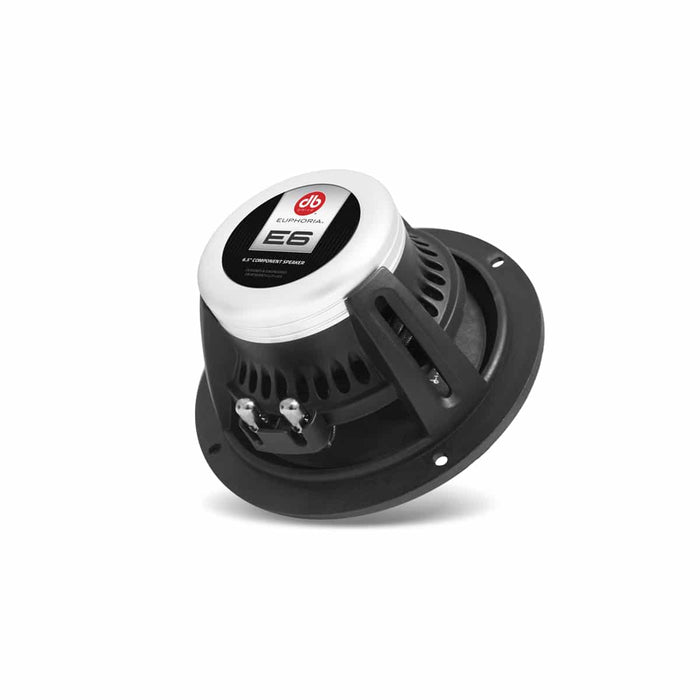

E6 6.5Midrange Driver

  • Polycarbonate Non-Magnetic Frame Structure
  • Radial Frame Venting
  • Kraft Pulp Wool Mixed Paper Cone
  • Soft Fillet Roll NB UV Resistant Surround
  • 30.5mm CCAW Kapton Former
  • 10mm Extended Gap Depth
  • Barium Ferrite Push Magnet
  • Active Induction Copper Modulation Pole Cap
  • Reverse EMF Bucking Neo Magnet

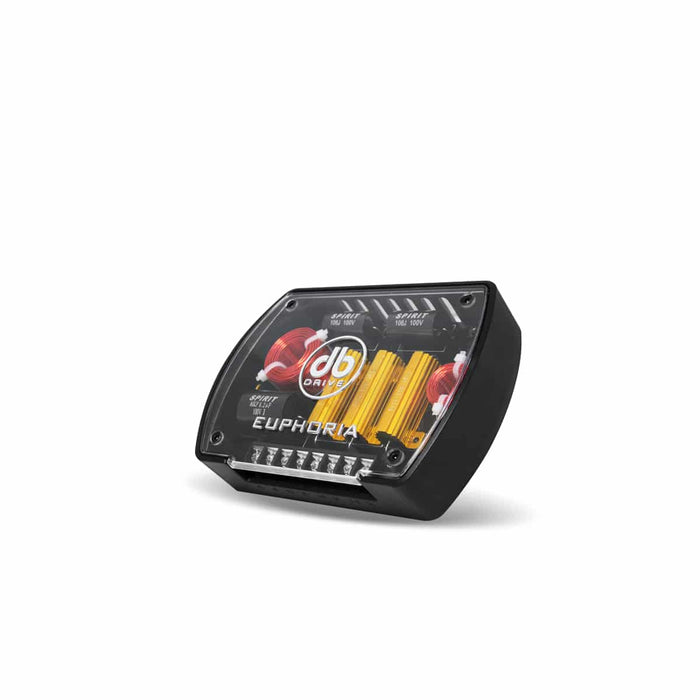

Audiophile Grade 2-Way Passive Crossover System

  • High Current Pure Copper Air Core Coil Inductors
  • Metalized Polypropylene Capacitors
  • Aluminum Chassis Wire-Wounds Non-Inductive Resistors
  • 3 Position Adjustable Tweeter Attenuation
  • Chassis Dimensions H x W: 68.05mm x 82.04mm / 2.67" x 3.23"
  • Mounting Depth: 29.57mm/1.16"
  • Cutout Diameter: 56.40mm/2.22"
  • Frame Diameter: 160mm / 6.29"
  • Mounting Depth: 75mm / 2.95"
  • Cutout Diameter: 143mm / 5.62"
  • Width: 75mm / 2.95"
  • Height: 125mm / 4.92"
  • Depth: 42.5mm / 1.67"
