OS12MB
by OKUR

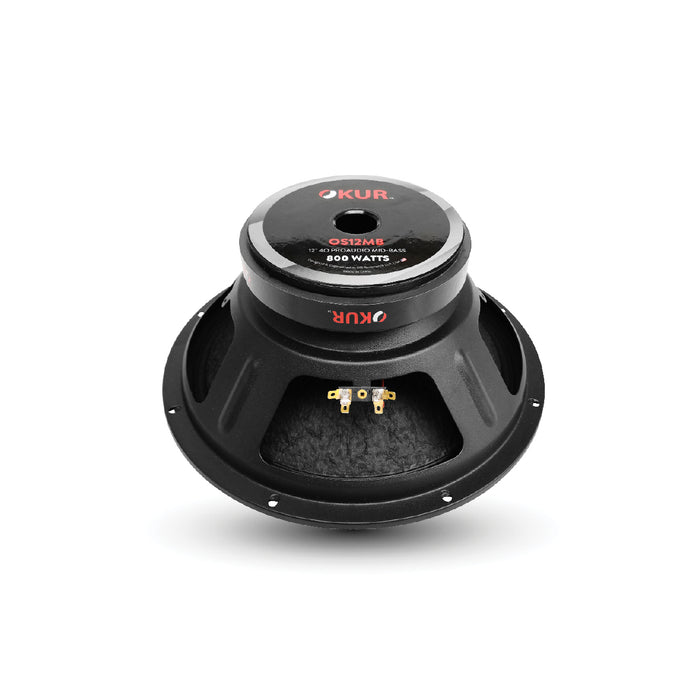

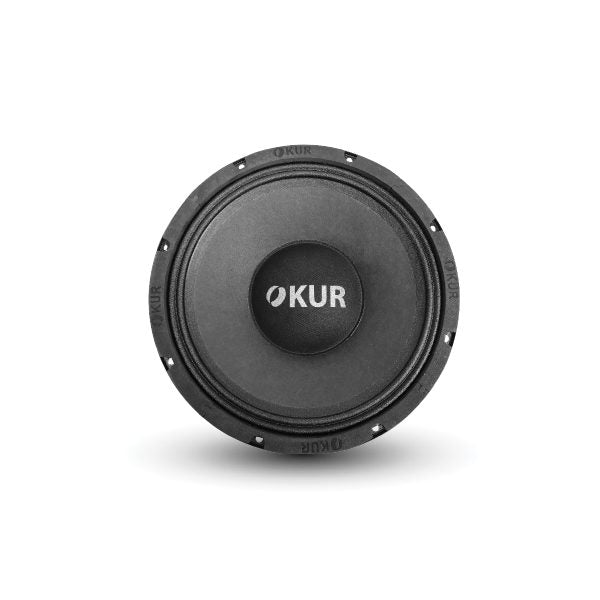

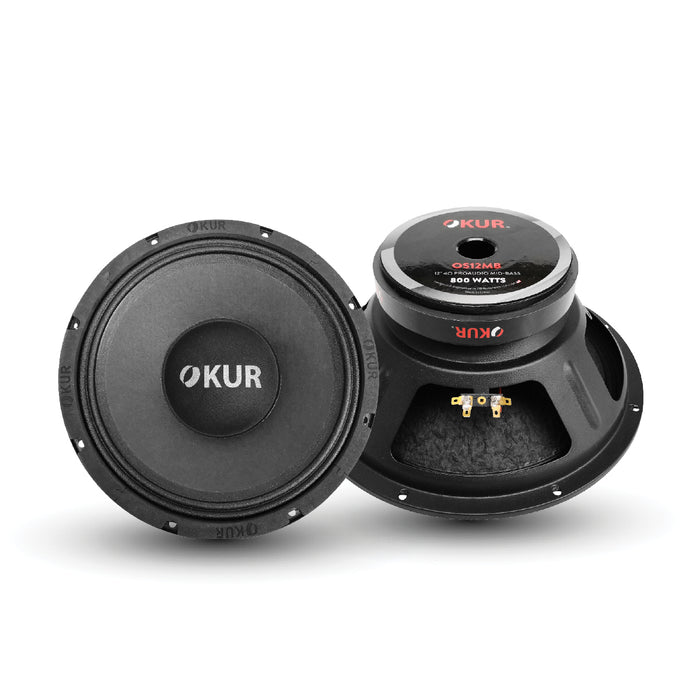

OKUR (OS12MB) 12″ PRO AUDIO MID-BASS HIGH OUTPUT
FEATURES:
- CCAW Voice Coil Wire
- KSV Coil
- Ferrite Magnet
- Stamped Steel Basket
- Paper Cone
- Cloth Cone Edge
T/S PARAMETERS:
- Resonant Frequency (fs) : 59.7Hz
- D.C. Voice Coil Resistance (Re) : 3.2
- Mechanical Quality Factor (Qms) : 8.23
- Electrical Quality Factor (Qes) : 0.57
- Total Quality Factor (Qts) : 0.53
- Compliance Equivalent Volume (Vas) : 53.1L
- BL Product (BL) : 10.6
- Diaphragm Mass inc. Airload (Mms) : 52.7 gr
ADDITIONAL SPECS:
- Basket Diameter : 12″ (304.8mm)
- Max Power : 800 Watts
- Nominal Power : 400 Watts
- Impedance : 4 Ω
- Resonance : 59.7Hz
- Sensitivity : 94.8

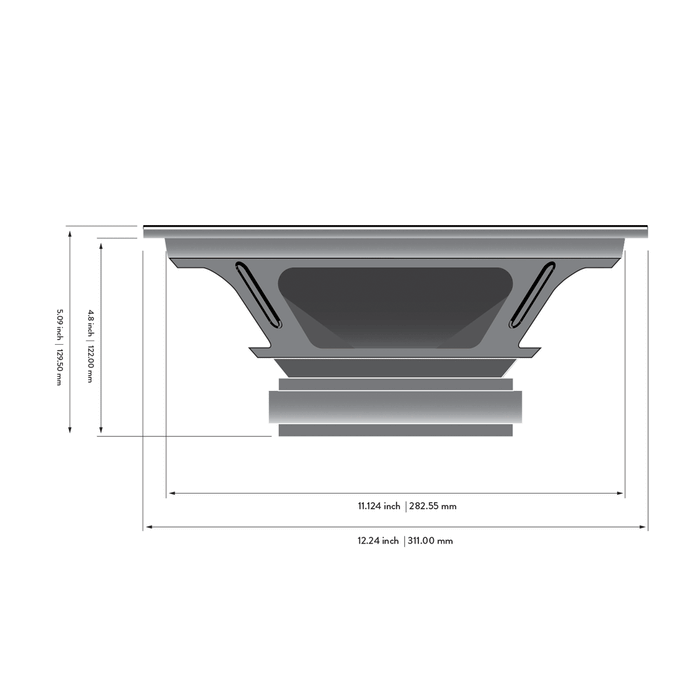

MOUNTING INFORMATION:
- Overall Diameter : 12.24″ (311mm)
- Cutout Diameter : 11.12″ (282.55mm)
- Mounting Depth : 4.8″ (122mm)
