EMA6004

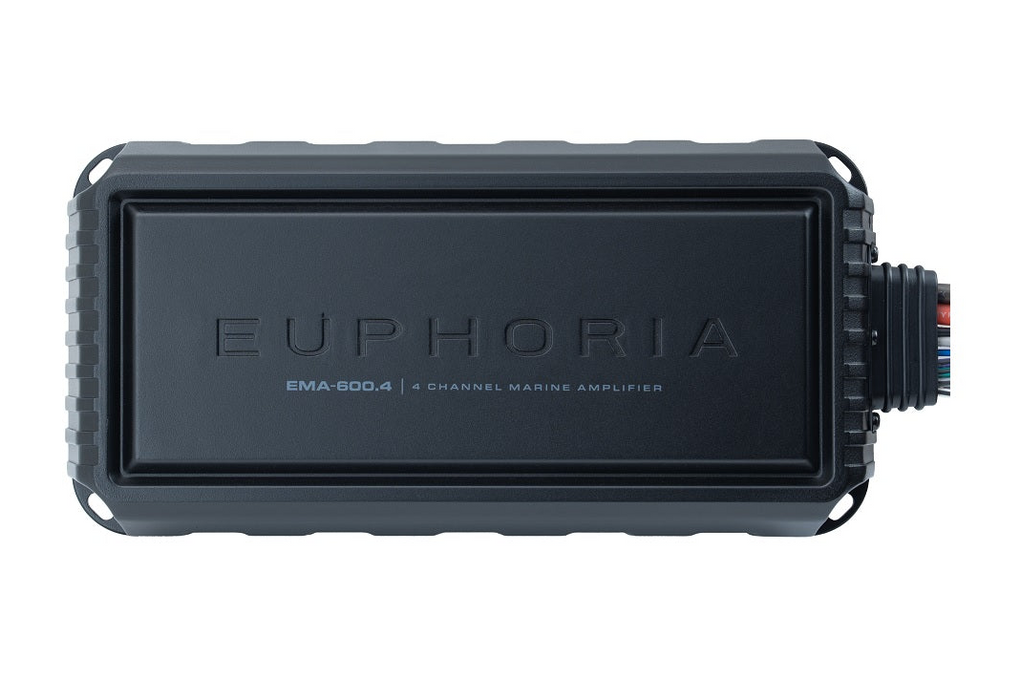

EUPHORIA EMA-600.4 4-Channel Class D Marine Amplifier

Compact yet capable, the EMA-600.4 energizes your system with smooth, reliable power, enhancing every moment with A Higher Standard of Sound.

FEATURES:

• High Efficiency Class D Technology - Delivers powerful sound while using energy efficiently, helping your system run cooler and reducing strain on your boat or vehicle’s electrical system.

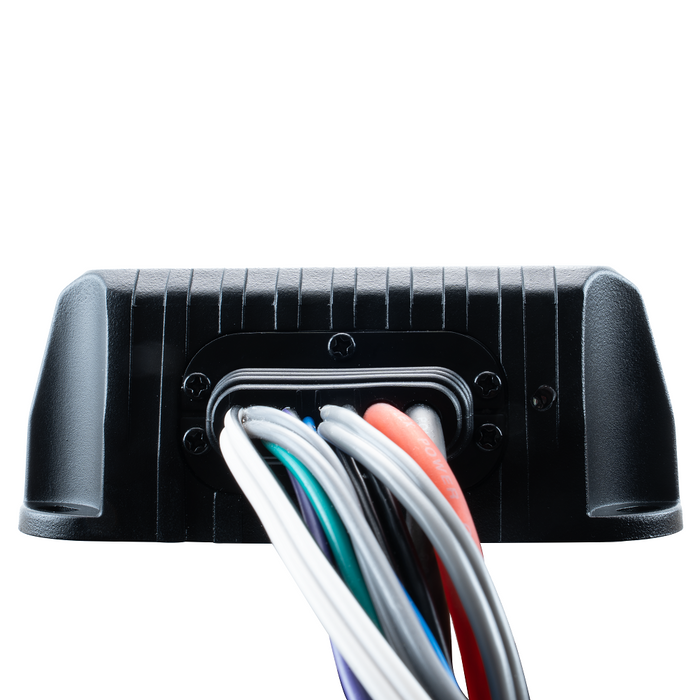

• IPX7 Rated Design with Water-Resistant Integrated Wiring Harness - Built to handle wet environments. The amplifier is sealed to resist water exposure, and the included wiring harness is designed to help keep connections protected from moisture.
• Bottom-mounted control panel with hydro-sealed cover - All tuning controls are located on the bottom of the amplifier and protected by a sealed cover to help prevent water and dirt from getting inside.
• ACT - Adaptive Crossover Technology - Automatically directs the right sound frequencies to the right speakers, helping your system produce clearer, more balanced audio.
• APC - Audio Circuit Protection - Built-in safety circuitry protects the amplifier from overheating, electrical issues, or damage caused by improper connections.
• Selectable Bass Optimization EQ (0dB-12dB) - Lets you boost the bass level to match your music style and listening preference, from natural bass to a deeper, more powerful sound.
• Marine / Powersport / Off-road Compatible - Designed for use in boats, UTVs, ATVs, and other outdoor vehicles where durability and weather resistance are essential.

SPECS:

• 4 x 125 Watts @ 4 ohms
• 4 x 185 Watts @ 2 ohms
• 2 x 325 Watts @ 4ohms (Bridged)
• Ch 1/2 High Pass / Low Pass Filter Variable: 50 Hz - 4 Khz
• Ch 3/4 High Pass / low Pass Filter Variable: 50 Hz - 4 KHz
• Working Voltage: 9- 16 Volts
• Frequency Response: 20Hz - 20KHz
• Signal to Noise Ratio @ Rated Power 91dB
• Low Level Input Range : 300MV - 6V

DIMENSIONS:

• L- 9.92"/ 252 mm
• W- 4.88"/ 124 mm
• H- 1.90"/ 48.5 mm
